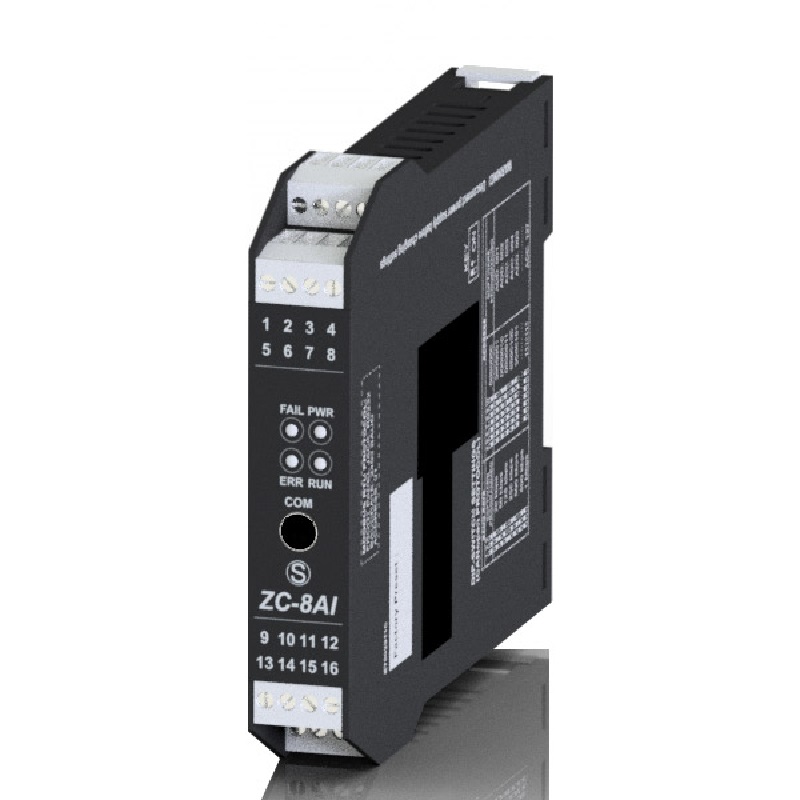

SENECA 8 CH analog input (mA, V) CANopen module

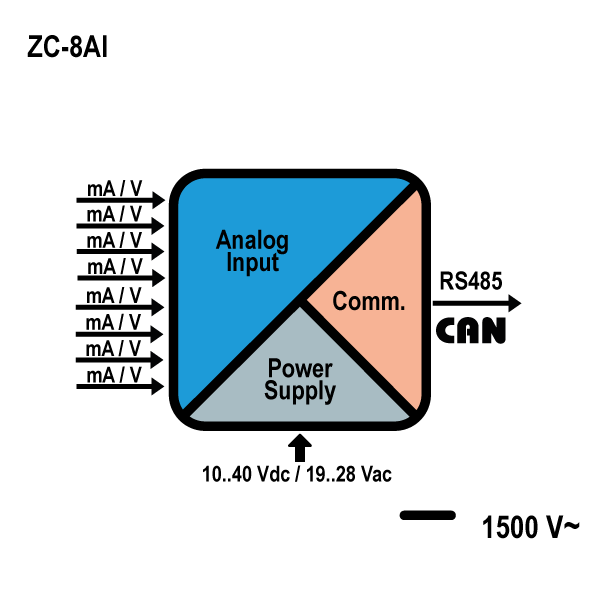

ZC-8AI is used to interface analog inputs (Voltage or current, also with bipolar range) with CANopen system. The modules is able to supply all 8 current loops at the same time, this is very useful for 2-wire sensors because the wiring does not need an external power supply. A 6-way galvanic isolation among Power supply // input (couples) // RS485 circuits assures the integrity of your datas.
| ORDER CODEÂ : | ZC-8AI |
| DESCRIPTION: | 8 CH analog input (mA, V) CANopen module |
| COMMUNICATION: | CANopen 401 v.2.01 |
| POWER SUPPLY: | 10..40 Vdc, 19..28 Vac |
| MAX CONSUMPTION: | 5 W |
| INSULATION: | 1,5 kVac (6 ways) |
| ANALOG CONVERSION RESPONSE TIME: | 20 ms (4 channels); 40 ms (8 channels) |
| ACCURACY: | 0,05% |
| RESOLUTION: | 15 bit |
| POWER TRANSDUCERS: | Up to 8 sensors (max 22 mA) |
| CHANNELS: | 8 |
| VOLTAGE RANGE: | ±10 V |
| CURRENT RANGE: | 0..20, 4..20 mA |
| OPERATING TEMPERATURE: | -10..+65°C |
| DIMENSION WXHXD: | 35x100x112 mm |
| Weight | 0.16 kg |
|---|
