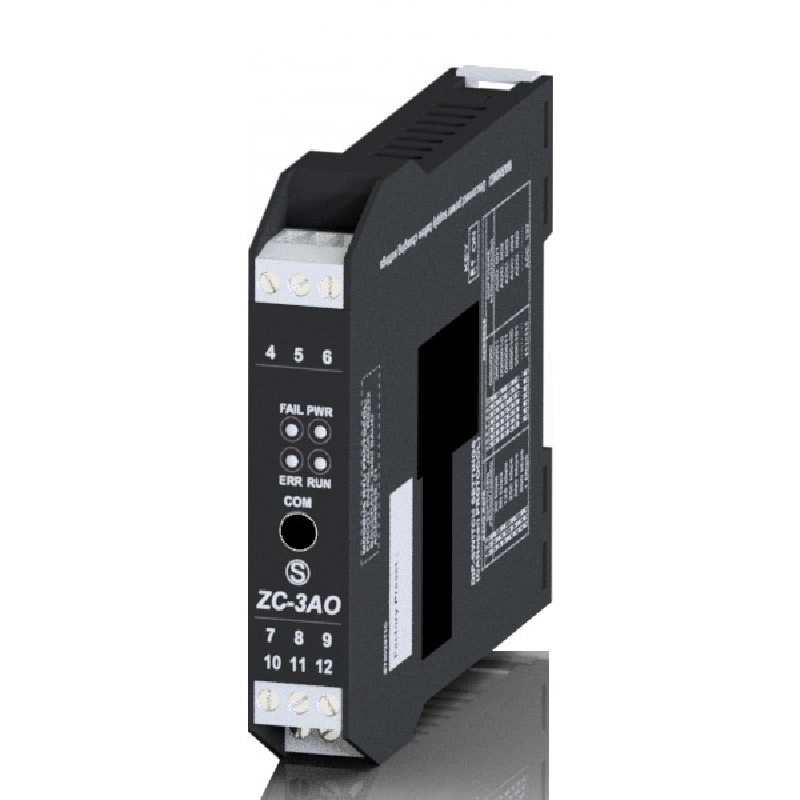

SENECA 3 CH analog output (mA, V) CANopen module

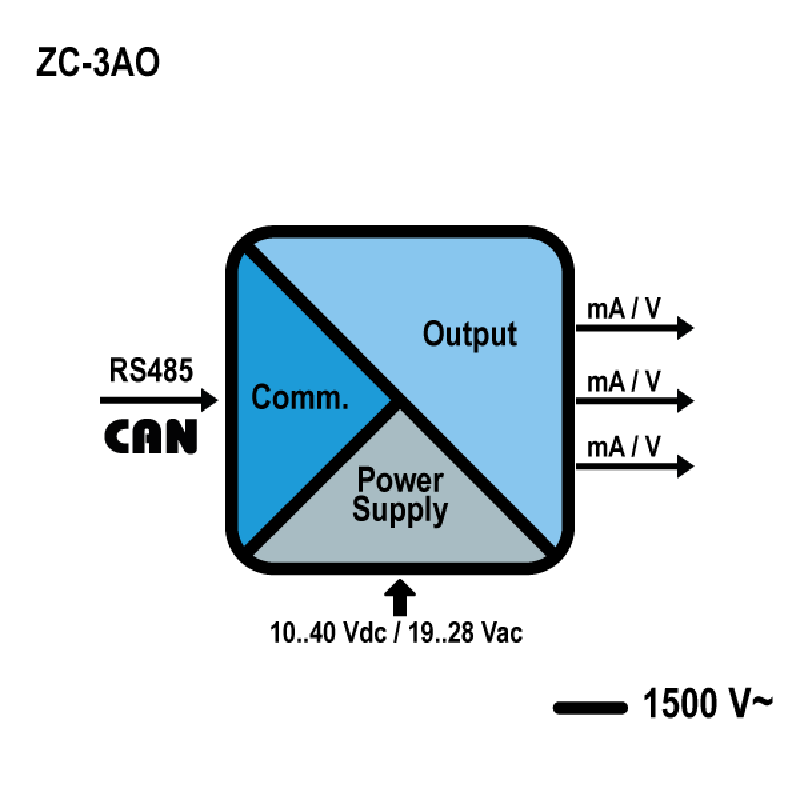

ZC-3AO is used to get N.3 analogue outputs (mA or V) from a CANopen system. The standard can be either mA (0..20mA / 4..20mA) or V (-10..10 V, 0..10 V or 2..10 V). A 3-way galvanic isolation among Power supply // input // RS485 circuits assures the integrity of your datas.
| ORDER CODEÂ : | ZC-3AO |
| DESCRIPTION: | 3 CH analog output (mA, V) CANopen module |
| COMMUNICATION: | CANopen 401 v.2.01 |
| POWER SUPPLY: | 10..40 Vdc, 19..28 Vac |
| MAX CONSUMPTION: | 2,5 W |
| INSULATION: | 1,5 kVac (5 way) |
| ACCURACY: | 0,05% |
| RESOLUTION: | 14 bit |
| CHANNELS: | 3 |
| VOLTAGE RANGE: | ±10 V |
| CURRENT RANGE: | 0..20, 4..20 mA |
| RPDO (0-100% OUTPUT): | < 20 ms |
| OPERATING TEMPERATURE: | -10..+65°C |
| DIMENSION: | 35 x 100 x 112 mm |
| Weight | 0.16 kg |
|---|
