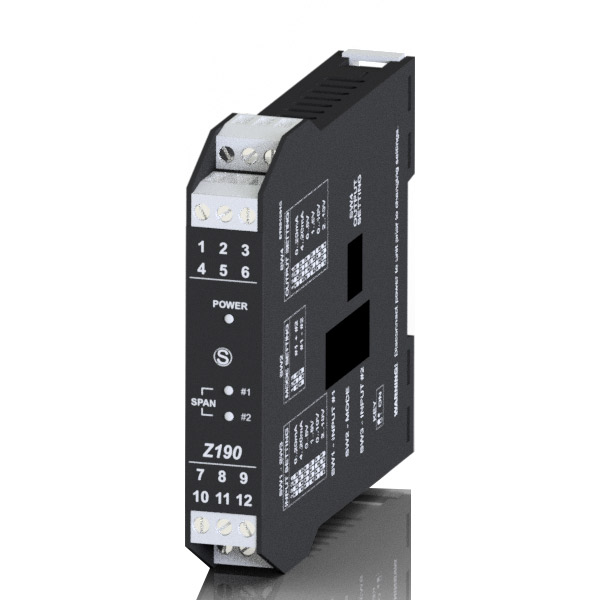

SENECA DC Adder – Subtracter / Isolator
Z190 allows to make the addition or the subtraction of 2 analog signal (mA or V) and get the equivalent output by an analog signal (mA or V). The two inputs can have also different importance. It disposes of dip switches to set the available input/output ranges. The auxiliary power supply allows also an active or passive connections on the output side. A 3-way galvanic isolation among Power supply // input // output circuits assures the integrity of your datas.
| ORDER CODEÂ : | z190 |
| DESCRIPTION: | DC adder – subtracter / isolator |
| POWER SUPPLY: | 19..40 (9..30 option) Vdc, 19..28 Vac |
| INSULATION: | 1.500 Vac |
| INPUT: | Nr 2 isolated and independent channels, current 0..20, 4..20 mA; voltage 0..5, 1..5, 0..10, 2..10 V |
| OUTPUT: | Current 0..20, 4..20 mA; voltage 0..5, 1..5, 0..10, 2..10 V |
| ACCURACY: | 0,2% |
| Weight | 0.16 kg |
|---|
