Description

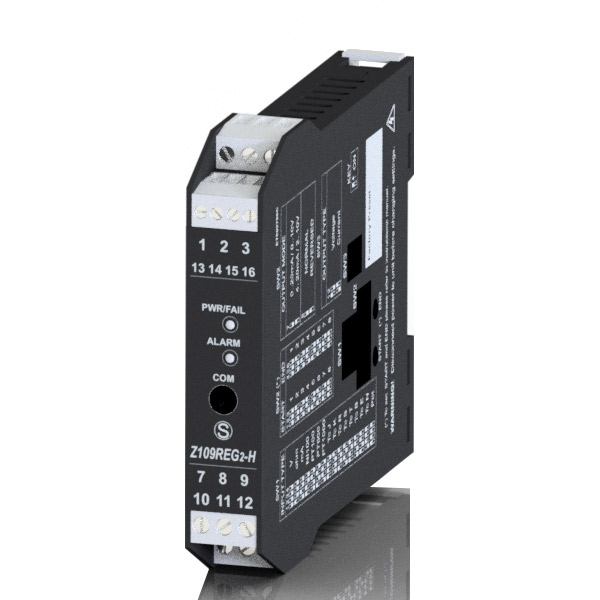

| ORDER CODE: | Z109REG2-H |
| DESCRIPTION: | High performance universal converter, 85-265 V |
| ANALOG INPUT: | current up to 20 mA, voltage from 75 mV to 20 V, RTD (Pt100, Pt500, Pt1000, Ni100), thermocouple (J, K, R, S, T, B, E, N), potentiometer, rheostat |
| ANALOG OUTPUT: | Current 0..20, 4..20 mA; voltage |
| DIGITAL I/O: | Strobe Input / Relay output (SPST) |
| RESOLUTION: | Programmable from 11 bit+sign to 15 bit+sign |
| PRECISION CLASS: | 0,1% |
| RESPONSE TIME: | 35 ms (@11 bit+sign) |
| INSULATION: | 1.500 Vac |
| POWER SUPPLY: | 85..265 Vac/dc |
