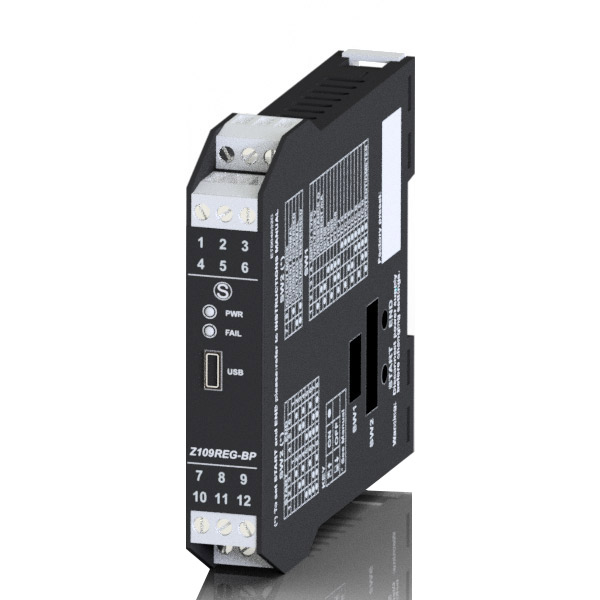

SENECA Universal Converter With Bipolar Ma / V Output
Z109REG-BP is a signal converter with universal input: voltage (mV), current (mA), thermocouples TC, thermoresistances RTD, potentiometer, rheostat, NTC. The module offers measurement and re-transmission on isolated analog bipolar output, with voltage output. By DIP-switch are selectable: type of input (start-end), output mode (zero elevation, scale inversion), output voltage type (mA or V). Through mini USB front connector, Z109REG-BP can be programmed by PC: start-end scale, additional input types, square root extraction, filter, burn-out etc.
| ORDER CODEÂ : | Z109REG-BP |
| DESCRIPTION: | Universal converter with bipolar mA / V output |
| POWER SUPPLY: | 10..40 Vdc, 19..28 Vac |
| POWER TRANSDUCER: | Yes, 2-3 wire technique |
| INSULATION: | 1.500 Vac at 3 ways |
| INPUT: | Nr 1 channel |
| OUTPUT: | Nr 1 bipolar channel (±10 V, ±20 mA) |
| SETTINGS: | Via software EASY SETUP / mini USB interface or DIP-switches |
| OPERATING TEMPERATURE: | -20 – +65°C |
| Weight | 0.16 kg |
|---|
