SENECA 3G+ Industrial modem for Z-PASS1 e Z-TWS4

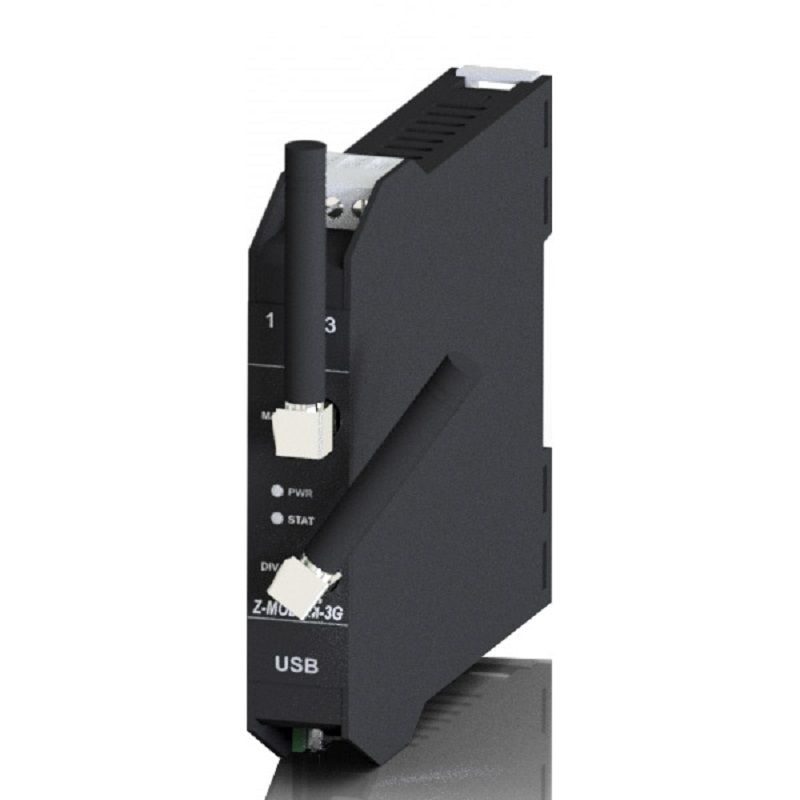

Z-MODEM-3G is a 3G+ industrial modem with microUSB interface. The rated input voltage of the module varies in the range 10..40 Vac and 19.. 28 Vdc with 2W (standby) and 5 W (max) consumption. Z-MODEM-3G is equipped with two SMA type antenna connector and standard SIMcard slot (21 x 15 mm). Designed for quick assembly on DIN 46277, Z-MODEM-3G is ideal for automation applications, M2M (Machine to Machine), remote control, environmental monitoring, security, remote I / O. The suitable use and perfect combination is with SENECA’s cpus like for example Z-TWS4 or Z-PASS1. Z-MODEM-3G includes only 1 SMA Antenna. The second SMA socket named DIV is used to install an auxiliary antenna improving the reception signal (see accessories).
| ORDER CODEÂ : | Z-MODEM-3G |
| DESCRIPTION: | 3G+ Industrial modem |
| POWER SUPPLY: | 10..40 Vdc; 19..28 Vac |
| INSULATION: | 1.500 Vac |
| OPERATING TEMPERATURA: | -10..+50°C |
| SERIAL INTERFACE: | RS232 |
| SUPPORTED PROTOCOLS: | Ftp, Smtp, Pop3, http , TCP-IP |
| GSM: | Quadband (GSM 850MHz, EGSM 900MHz, DCS 1800MHz, PCS 1900MHz) |
| 3G+: | HSPA+, HSDPA, HSUPA |
| DATA DOWNLOAD TRANSFER: | max. 14.4 Mbps |
| DATA UPLINK TRANSFER: | max. 5.76 Mbps |
| Weight | 0.16 kg |
|---|
