Call for Price

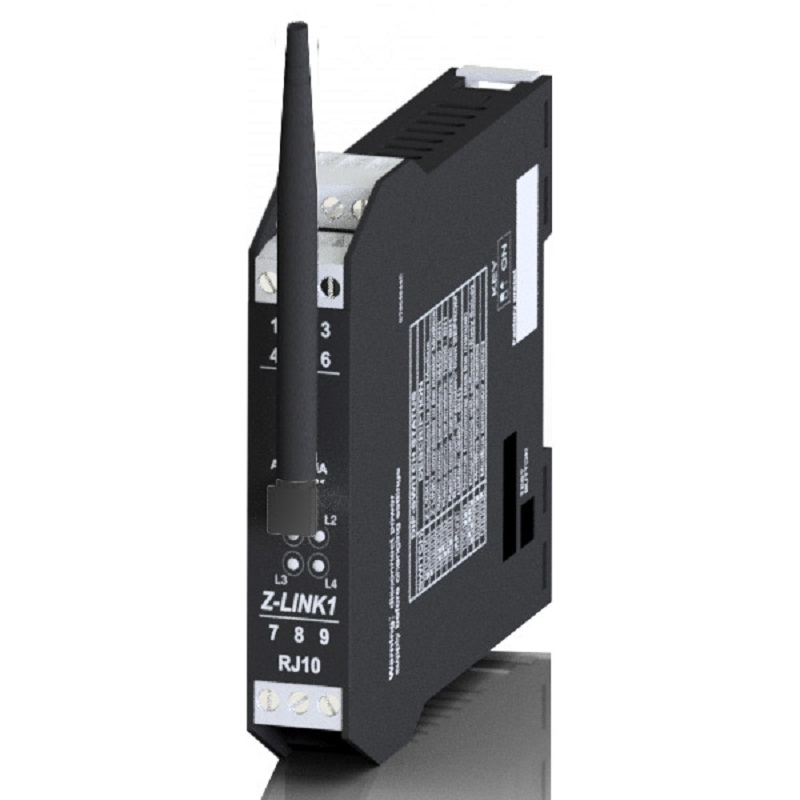

SENECAÂ 869 Mhz Radiomodem with RS232/RS485 interface
Z-LINK1-NM is a 869 MHz radio device suitable to establish a wireless Modbus communication. The device is able to manage different and separated ModBUS networks. The device comes with a standard antenna of 11 cm, but it is strongly recommended to use an external antenna (i.e. ANT-LINK1-NM).
| ORDER CODEÂ : | Z-LINK1-NM |
| DESCRIPTION: | 869 Mhz Radiomodem with RS232/RS485 interface |
| BANDWIDTH: | 869.4 – 869.650 MHz |
| COMMUNICATION MODE: | Half-Duplex |
| INTERFACE: | RS232 / R485 |
| MESH NETWORK CAPABILITY: | No |
| PROTOCOL: | ModBUS RTU |
| RANGE TRANSMISSION: | 100 m (standard conditions) contact us to analyze your application. For distances over 20 m external antenna ANT-LINK1-MGÂ is mandatory |
| IRRADIATED POWER: | 20 mW |
| TRANSMISSION DATA SPEED: | 1.200..115.200 bps |
| Weight | 0.16 kg |
|---|
