Call for Price

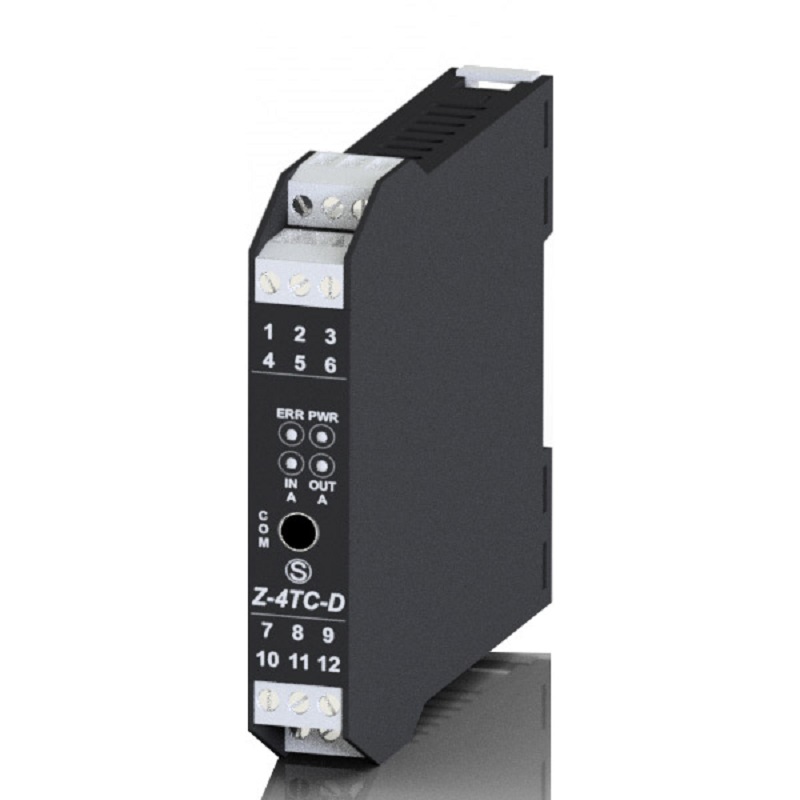

SENECA Thermocouples A/D converter

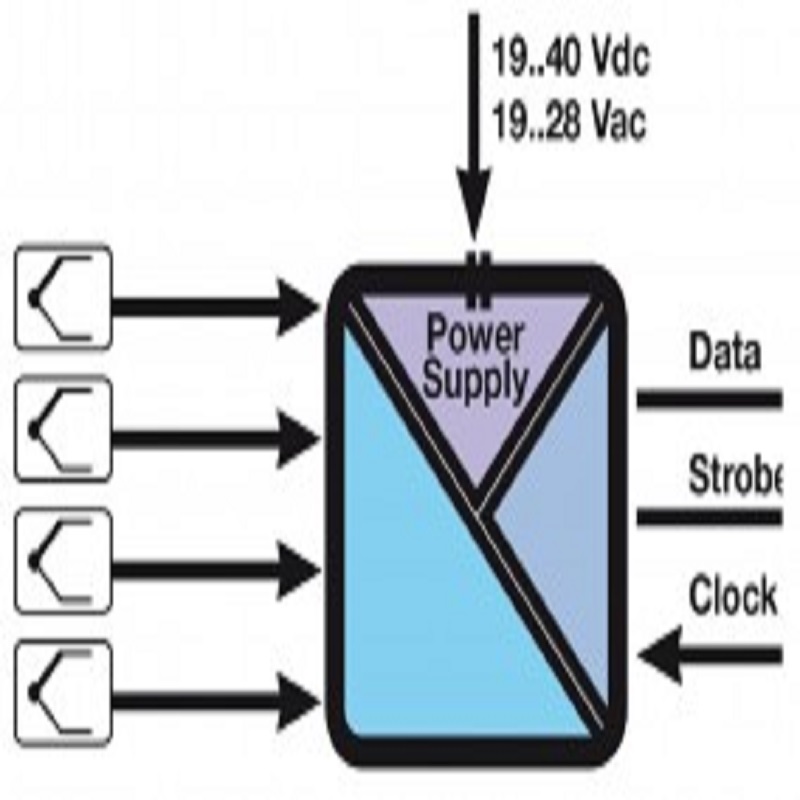

Z-4TC-D allows to acquire up to N.4 Thermocouple sensors (J, K, E, N, S, R ,B ,T) through a PLC with only digital input/output. The PLC interface is based on three PNP-type signals suited for connection to most PLCs available in the market. The interface is composed of a CLOCK signal generated by the PLC (transistor output), a DATA signal and STROBE signal generated by the module.
| ORDER CODEÂ : | Z-4TC-D |
| DESCRIPTION: | Thermocouples A/D converter |
| POWER SUPPLY: | 19..40 Vdc; 19..28 Vac 50-60 Hz |
| INSULATION: | 1.500 Vac |
| INPUT: | Voltage ± 80 mV or thermocouples J,K,R,S,T,B,E,N |
| OUTPUT: | Digitali signal as strobe (end-of-sequence), data, clock |
| ACCURACY: | 0,1% |
| Weight | 0.16 kg |
|---|
