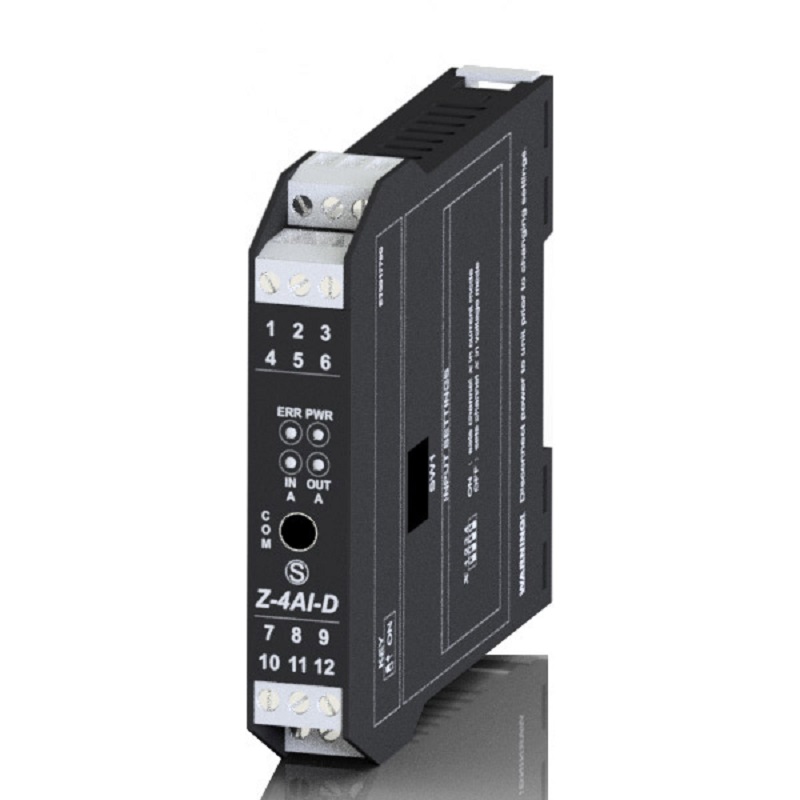

SENECA DC current-voltage A/D converter

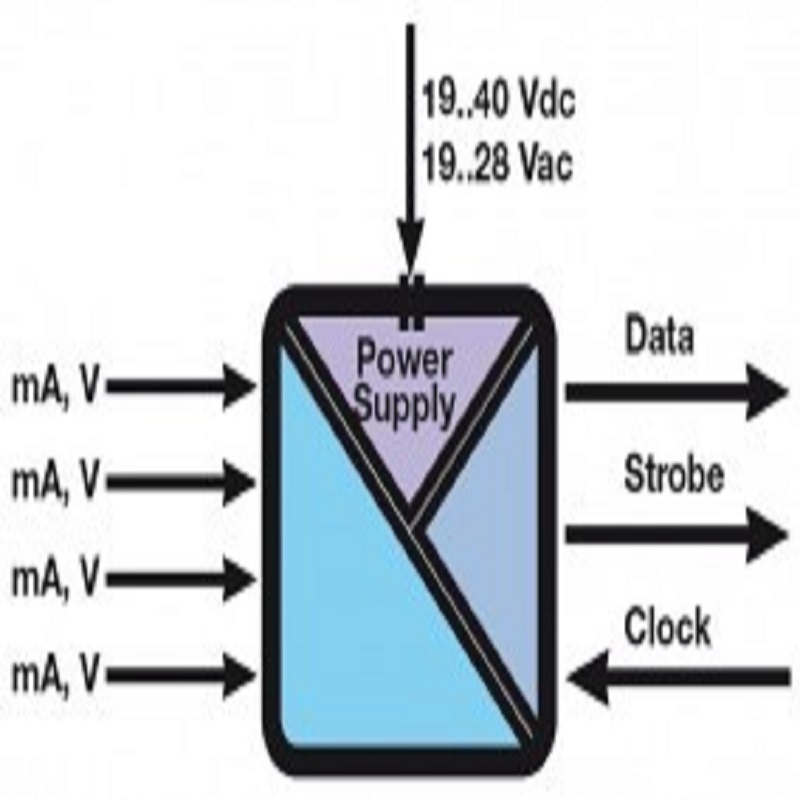

Z-4AI-D allows to acquire up to N.4 analogue inputs (ma or V) through a PLC with only digital input/output. The PLC interface is based on three PNP-type signals suited for connection to most PLCs available in the market. The interface is composed of a CLOCK signal generated by the PLC (transistor output), a DATA signal and STROBE signal generated by the module.
| ORDER CODEÂ : | Z-4AI-D |
| DESCRIPTION: | DC current-voltage A/D converter |
| POWER SUPPLY: | 19..40 Vdc; 19..28 Vac 50-60 Hz |
| INSULATION: | 1.500 Vac |
| INPUT: | Voltage ± 10 Vdc, ± 2 Vdc, current ± 20 mA |
| OUTPUT: | Digital signal strobe (end-of-sequence), data, clock |
| ACCURACY: | 0,1% (voltage), 0,2% (current) |
| Weight | 0.16 kg |
|---|
