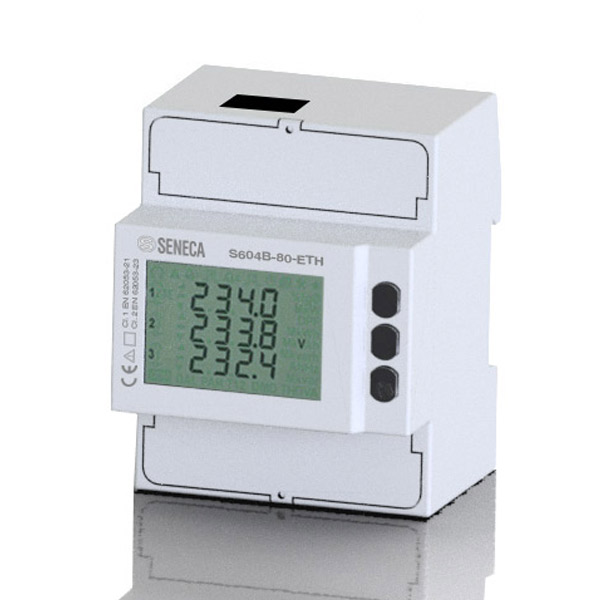

SENECA Three-Phase Power Meter BASIC Version
S604B is an innovative instrument for measurement and recordings of the electrical parameters. It is particularly suitable for consumption analysis and control, with an excellent quality/price ratio. For the version with Rogowski coils input, connections are very quick and easy, very useful for retrofitting applications on existing switchboards or for energy audit. Unlike the Energy Plus versions, S604B has 1 MB data memory for recordings where it can record only the average values for active & reactive powers. S604B has no harmonics calculations. On request, the instrument can communicate through the RS485 serial port by ModBUS RTU/ASCII protocol or through LAN interface by ModBUS TCP protocol.
| POWER SUPPLY | 180..285 Vac (self powered models) 85..265 Vac (auxiliary powered models) |
| DISPLAY | Backlighted LCD 43×29 mm |
| HARMONICS | No |
| RECORDINGS | Average values for active & reactive powers |
| MEMORY FOR DATA LOGS | 1 MB |
| ACCURACY | 0,2% (voltage), 0,4% (current), 0,5% (power) |
| CONNECTIONS | 1/5A (external CTs), 80A (direct), Rogowski Coils |
| INTERFACES | RS485, LAN |
| CERTIFICATIONS | CE |
| DIMENSION | 72x90x65 mm |
| Weight | 0.365 kg |
|---|
