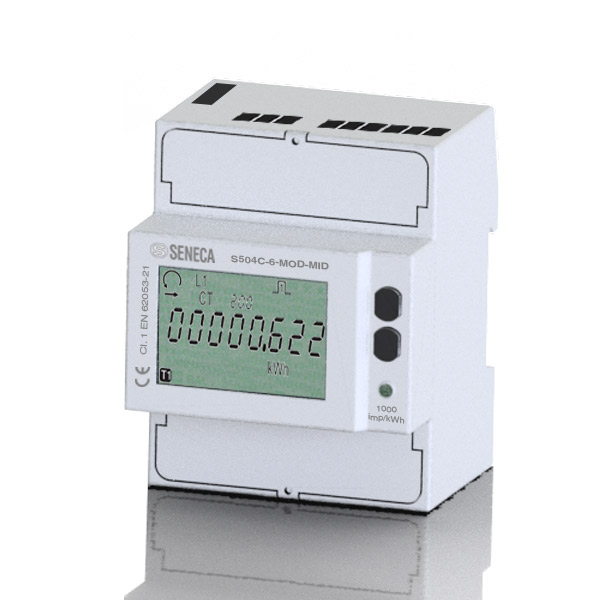

SENECA 6A 3/4 Wires Three Phase Energy Counter With Communication Interface
S504C-is a 4 DIN energy counter module (also with MID certification available) for the energy measurement in industrial and civilian application, with built-in communication (RS485 Modbus, M-Bus or Ethernet). Besides the energy, the counter can measure the main electrical parameters and makes them available on the builtin COM port. The LCD display shows the energies and the instantaneous powers. The COM port allows to manage the connected meter by a remote station. Data is transmitted on a RS485, M-Bus or Ethernet line according to the instrument model.
| POWER SUPPLIED | From the voltage lines |
| VOLTAGE | 3×230/400V … 3×240/415V 50/60Hz 4 wires |
| MAX CURRENT | 6 A |
| COMMUNICATION INTERFACES | RS485 Modbus, M-Bus, 10/100Base T Ethernet |
| ACCURACY | Active energy class 1 according to IEC/EN 62053-21, Reactive energy class 2 according to IEC/EN 62053-23 |
| S0 OUTPUT | 1 Passive optoisolated, Pulse length 50 ±2ms ON time |
| METROLOGICAL LED | Meter constant 10000 pulse/kWh |
| OPERATING TEMPERATURE | -25°C … +55°C |
| CERTIFICATIONS | CE, MID |
| Weight | 0.4 kg |
|---|
