Call for Price

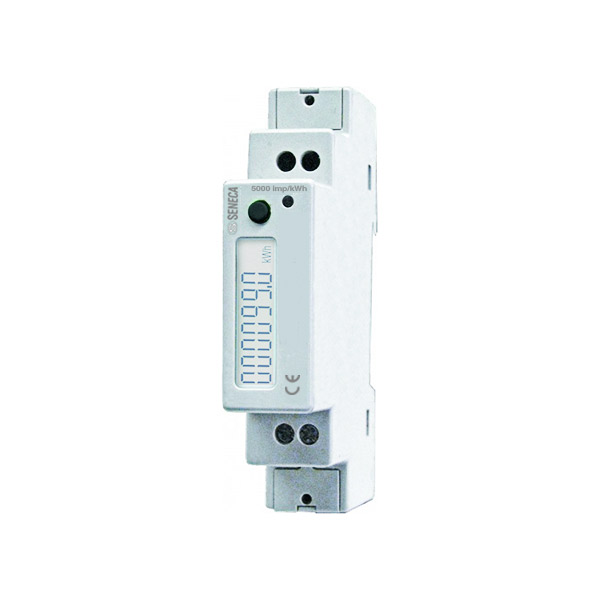

SENECA 40A 2 Wires Single Phase Energy Counter
S501-40 is a MID certified 1 DIN module energy counter for the active energy monodirectional measurement in industrial and civilian application. Besides the energy, the counter can measure the main electrical parameters and makes them available on the display and on the communication port (optional): versions available also with ModBUS or M-BUS interfaces.
| POWER SUPPLY | From voltage lines |
| VOLTAGE RANGE | 3×230/400V..3×240/415 V 50/60 Hz 4 wires; 3x400V..3x415V 50/60 Hz 3 wires |
| CURRENT | 40Â A |
| DISPLAY | Backlighted LCD, 43×12 mm |
| ACCURACY | Class B according to EN 50470-3 |
| METROLOGICAL LED | Meter constant 5000 imp/kWh |
| S0 OUTPUTS | 1 passive optoisolated |
| DIMENSION | 18x90x65 mm |
| PROTECTION DEGREE | IP20 |
| CERTIFICATIONS | CE, MID (optional) |
| Weight | 0.4 kg |
|---|
