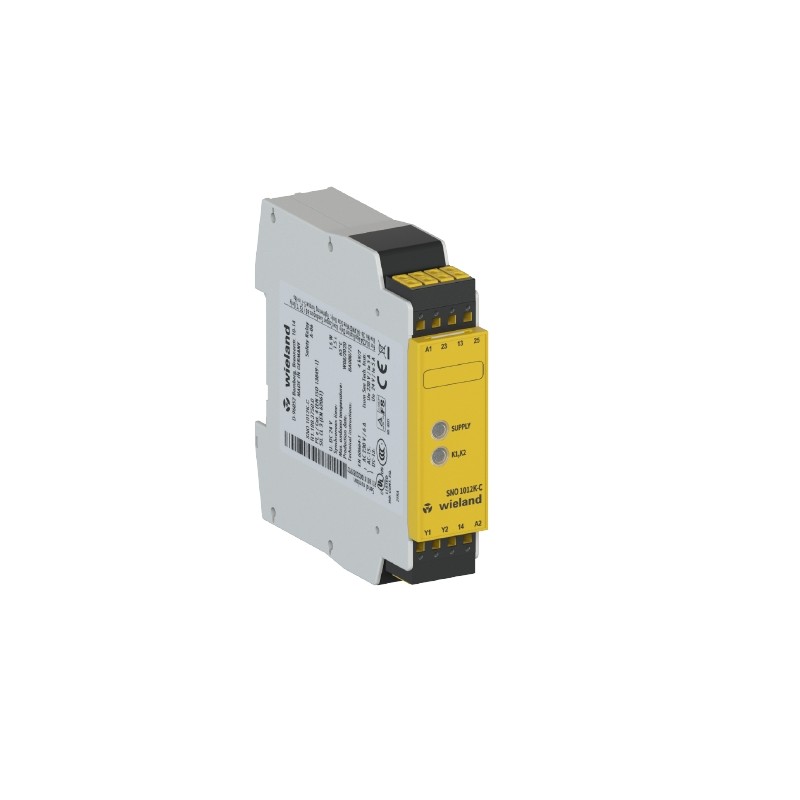

Description
Connection Data
| Detachable clamps | Yes |
|---|---|
| Type of electric connection | Screw connection |
Application
| Model | Basic device |
|---|---|
| Suitable for monitoring of magnetic switches | No |
| Suitable for monitoring of proximity switches | Yes |
| Suitable for monitoring of emergency-stop circuits | Yes |
| Suitable for monitoring of optoelectronic protection equipment | No |
| Suitable for monitoring of position switches | Yes |
Output Circuit
| Enabling paths | Normally open contact |
|---|---|
| Contact material | Ag-alloy |
| Rated switching voltage, enabling paths AC | 240Â V |
| Rated switching voltage, enabling paths DC | 50Â V |
| Max. thermal current Ith, enabling paths | 6Â A |
| Max. total current I² of all current path | 9 A² |
| Application category AC-15 (NO) | Ue 230V, Ie 3A |
| Application category DC-13 (NO) | Ue 24V, Ie 3A |
| Short-circuit protection (NO), max. fuse insert | 6 A class gG fuse, fuse integral < 100 A²s |
| Mechanical life | 107Â switching cycles |
| Outputs, safe, undelayed, with contact | 2 |
| Outputs, safe, delayed, with contact | 0 |
Control Circuit
| Nominal output voltage DC | 24Â V |
|---|---|
| Input current (safety circuit / reset circuit) | 50Â mA |
| max. ​peak current (safety circuit / reset circuit) | 70 mA |
| Response time tA1 | 20Â ms |
| Response time tA2 | 70Â ms |
| Min. switch-on time | 30Â ms |
| Recovery time tW | >Â 200Â ms |
| Release time tR | <Â 70Â ms |
| max. ​resistivity, per channel | ≤ (5 + (1,333 x UB / UN – 1) x 200) Ω |
| Type of switch function of the inputs | Normally open contact |
| Evaluation inputs | 1-channel |
Supply Circuit
| Nominal voltage UN | AC/DC 24 V |
|---|---|
| Rated consumption AC | 2Â VA |
| Rated consumption DC | 1Â W |
| Rated frequency min. | 50Â Hz |
| Rated frequency max. | 60Â Hz |
| Operating voltage min. | 20.4Â V |
| Operating voltage max. | 26.4Â V |
| Electrical isolation supply circuit – control circuit | No |
| Min. rated control supply voltage at AC 50 Hz | 20.4Â V |
| Max. rated AC voltage for controls, 50 Hz | 26.4Â V |
| Min. rated DC voltage for controls | 20.4Â V |
| Max. rated DC voltage for controls | 26.4Â V |
| Min. rated control supply voltage at DC | 20.4Â V |
| Rated control supply voltage at AC 60HZ | 20.4Â V |
| Rated control supply voltage at AC 50HZ | 26.4Â V |
