Description

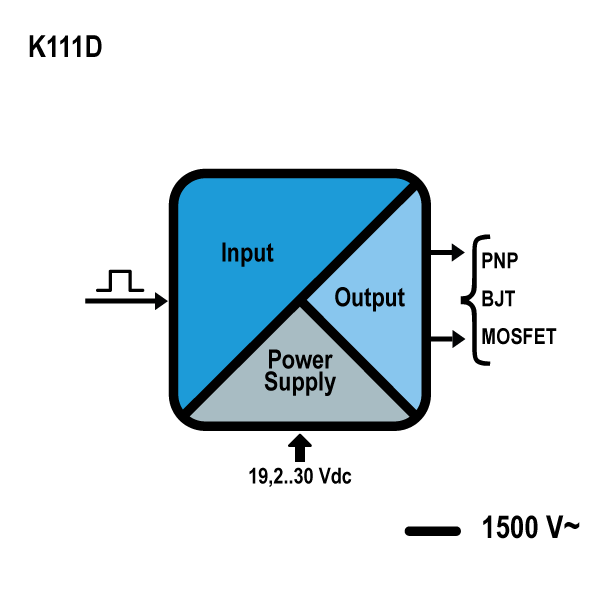

| POWER SUPPLY | 19,2..30 Vdc (direct) or with Smart Supply system |
| POWER SUPPLY ON SIDE CLAMPS | Yes |
| SENSOR POWER SUPPLY | Yes, available voltages 8V±0.6V, 12±1V, 22V±2V, max. current 22 mA |
| HOT SWAPPING | Yes |
| MAX ABSORBED CURRENT | < 25 mA |
| MAX. POWER DISSIPATION | 500 mW |
| CONVERSION A/D | 14 bit |
| REJECTION | 50 – 60 Hz |
| LED | Power supply, outputs status |
| CONFIGURATION | via Software (EASY SETUP), via DIP switch |
| INPUT FILTER | Can be activated with programmable cut-off frequency |
| INSULATION | 1,5 kVac (2 ways, input // output) |
| INSULATION TECHNIQUE | Digital /Â Optocoupler |
| ELABORATION | 32-bit floating point calculation |
| COMMUNICATION PORT | 1 4pin frontal connector, pitch 2,54 mm |
| ACCURACY CLASS | 0,1% |
| SPECIAL FUNCTIONS | Direct operation Repeater Frequency divider Average measurement in a window of N pulses (N<=256) |
| CONNECTION | Spring and/or Bus |
| INPUT CHANNEL | 1 |
| INPUT TYPE | Mechanical contact, contact IEC 1131.2 (type 1), Namur (DIN 19234, EN 60947-5-6), 2-wire NPN / PNP (12 or 22 V), Reed, Photocell, Reed |
| OUTPUT CHANNELS | 2 independent channels protected by DC |
| OUTPUT TYPES | independent channels protected against DC, PNP, Repeater or Input Divider |
| HOUSING | PBT, black |
| PROTECTION DEGREE | IP20 |
| DIMENSION WXHXD | 6,2×93,1×102,5 mm |
| WEIGHT | 45 g |
| OPERATING TEMPERATURE |  -20..+65°C |
| MOUNTING | Guida DIN 35 mm IEC EN60175 |
