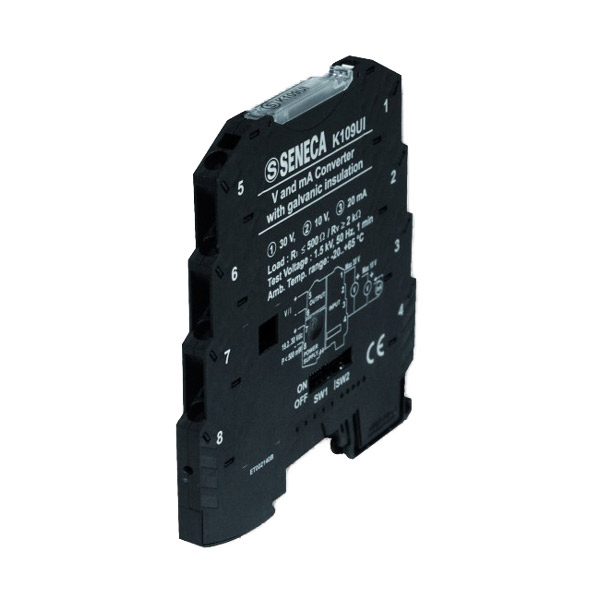

SENECA Galvanic Isolator Analog Converter

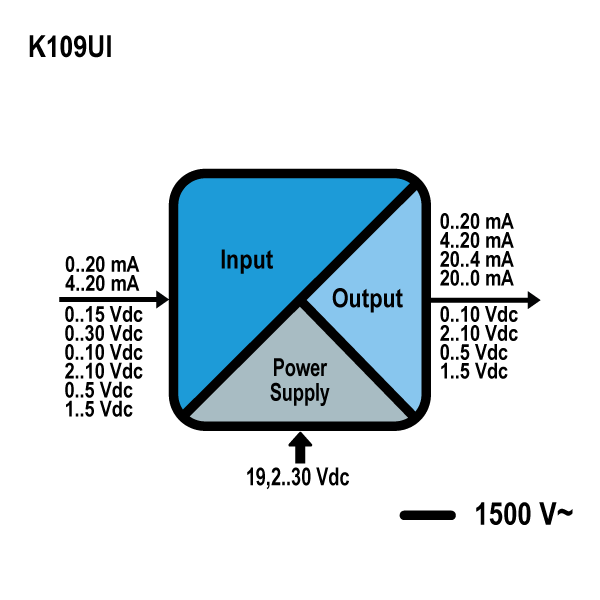

The K109UI is designed to accept a single channel standard current or voltage process signal input and give a single, isolated voltage or current output. It has a “Tank” linearization capability designed for use in horizontal cylindrical tank applications, and a “SQRT” function for flow related applications, all of which are easily configured using DIP switches. The DIN-Rail mountable K109UI offers optional K-BUS connectivity allowing further savings in time and wiring by bussing together the nominal 24V DC power supply connections.
