Cloud BOX

RM12,594.00

SENECA Cloud-Iot System Compatible With Dataloggers, Gateways, Rtus And SENECA Communication Devices.

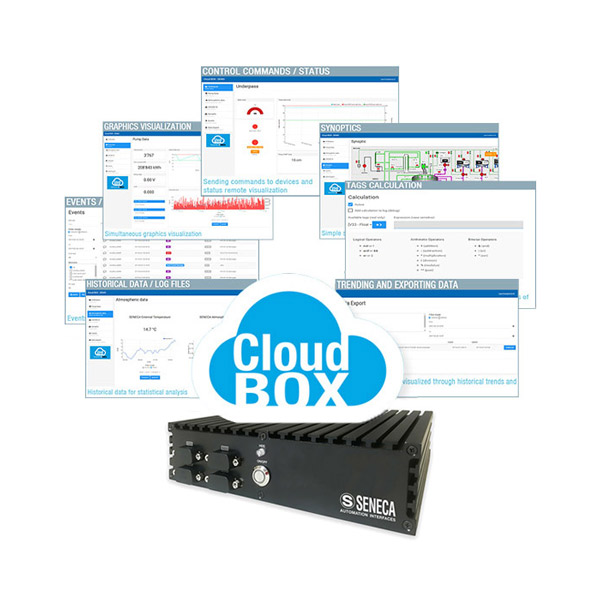

Cloud BOX (ver.2) is a Cloud-IoT infrastructure available as a licensed HW (Industrial IoT Box) or VM (VMWare Virtual Machine) appliance compatible with SENECA dataloggers, gateways, RTUs and communication devices.

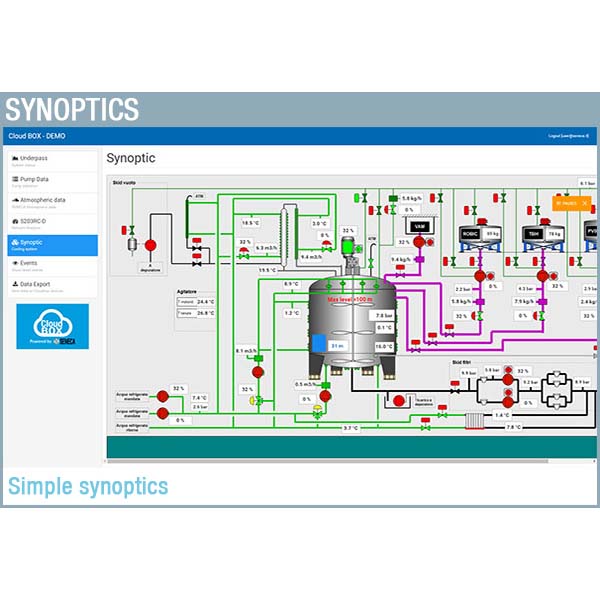

This Cloud-IoT server is able to receive, store and display data/events/historical series on web pages/synoptic diagrams. Among the advanced functions, Cloud BOX integrates an automatic data recovery system from the various devices even in case of temporary absence of communication. The storage of all data collected on the DB locally can be set up to 10 years.
Cloud BOX offers easy user management even for service networks structured with multi-level areas and groups. Its graphical interface, based on dashboards and responsive widgets, offers a real-time configuration and supervision service and can be consulted from any device in the local network or remotely. Cloud BOX can send event-based alarm emails to preset user/group address books and send commands to devices with M2M SIM card.

Different versions are available (with a one-off license) depending on your needs:
– Industrial IoT Box with license up to 5.000 TAGs (Plug&Play)
– VMWare Virtual Machine with license up to 1.000 TAGs (*)(**)
– VMWare Virtual Machine with license up to 5.000 TAGs (*)(**)
– VMWare Virtual Machine with license up to 10.000 TAGs (*)

To find out more, request your free DEMO server login credentials by contacting our technical support or selecting “SUPPORT & INFORMATION” below.

Out of stock


Categories: , ,

Description

AVAILABLE APPLIANCES HW – Industrial IoT BOX Physical server
VM – VMWare Virtual Machine
AVAILABLE VERSIONS AND MAX NUMBER OF TAGS MANAGED version Industrial IoT BOX with license up to 5.000 TAGs max
version VMWare Virtual Machine with license up to 1.000 TAGs max
version VMWare Virtual Machine with license up to 5.000 TAGs max
version VMWare Virtual Machine with license up to 10.000 TAGs max
SUPPORTED PRODUCTS
PRODUCT /FUNCTIONS Datalogger Embedded I/O Additional I/O modules Modem Ethernet Gateway
MYALARM SEAL x x 2G
Z-LOGGER3 x x x x
Z-GPRS3 x x x 2G x
Z-UMTS x x x 3G+ x
Z-PASS1 x x x x x
Z-PASS2 x x x 3G+/4G x x
MONITORING DEVICE OPERATION TIME Yes
USER ACCESS MANAGEMENT Access to multiple areas and groups, logo customization
HTML5+CSS RESPONSE SUPERVISION Dashboard
Widgets
Screens
ADVANCED FEATURES Display real-time telemetry

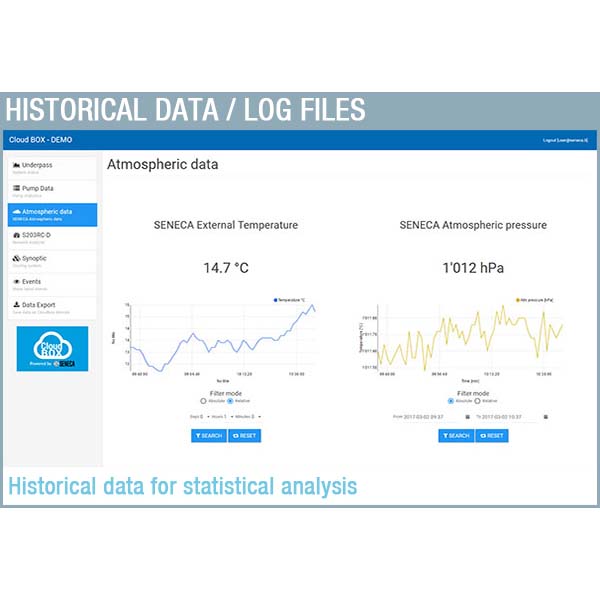

Analysis of historical data

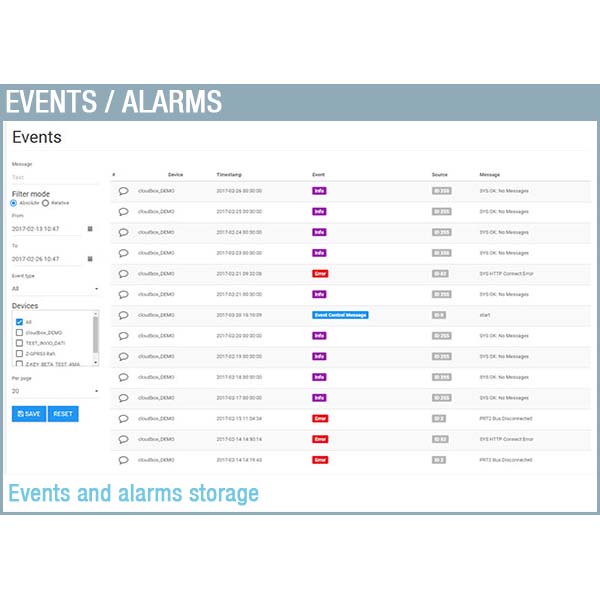

Analysis of alarm and event logs
Data storage with local storage on DB
Data storage settable up to 10 years

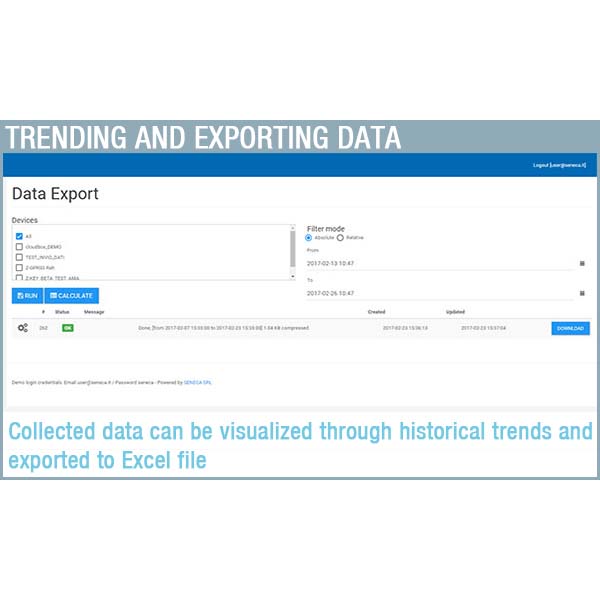

Data export in .CSV format

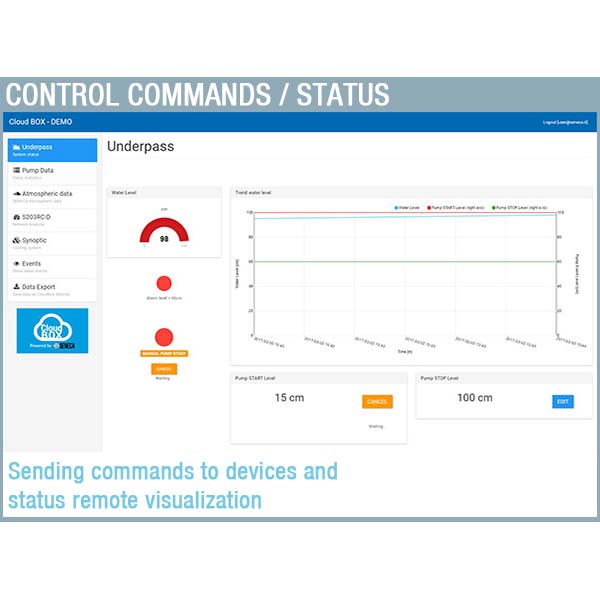

Send commands to connected devices
Send alarm email to user directory
SUPPORTED PROTOCOLS HTTP, HTTPS, FTP
API FOR INTEGRATION WITH 3RD PART SYSTEMS Yes
CONFIGURABLE WITH STATIC AND PUBLIC IP Yes, recommended
RELATED SOFTWARE SeAL, Log Factory, SDD (Seneca Discovery Device)
MEDIA COMPATIBLE Desktop, Tablet, Smartphone, Smart TV
COMPATIBLE OPERATING SYSTEMS Windows, Android, iOS
COMPATIBLE BROWSER Google Chrome

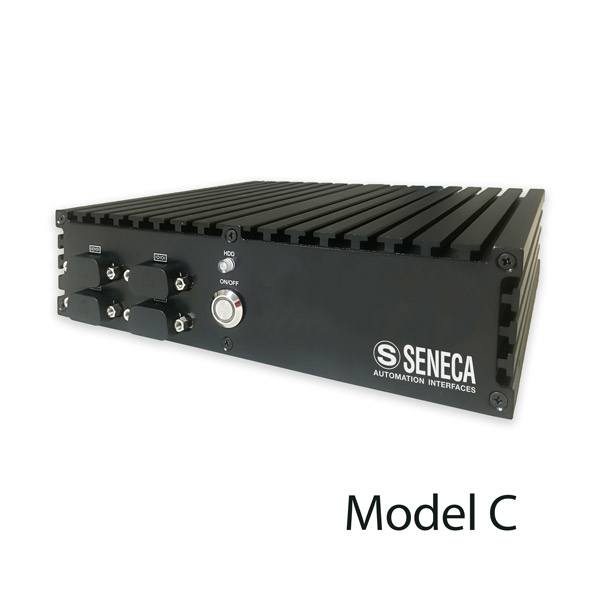

TECHNICAL DATA HW – Industrial IoT BOX Physical server
POWER SUPPLY 12 Vdc (power supply is provided)
OPERATING TEMPERATURE 0 °C – +40 °C
STORAGE TEMPERATURE -20°C..+85°C
DIMENSION (D X W X H) 165 x 185 x 48 mm
FACTORY IP ADDRESS Automatic setting via DHCP server.
Without DHCP server: IP 192.168.90.101, Subnet-mask 255.255.255.0, Gateway 192.168.90.1
CASE / CPU COOLING Compact / Fanless
CONFORMITY CE, FCC, RoHS, ErP Ready
MOUNTING Wall mounting and DIN rail mounting
PROCESSOR Intel Celeron J1900 2.0 GHz Quad-Core
RAM 4 GB DD3L-1333
HARD DISK 64GB mSATA SSD
LAN CONTROLLER Intel 211-AT Gigabit LAN
USB Nr.3 USB 2.0 ports, Nr.1 USB 3.0 port
LAN Nr.2 RJ45 (1 reserved)
VIDEO VGA, HDMI
