Z109UI2-1

Call for Price

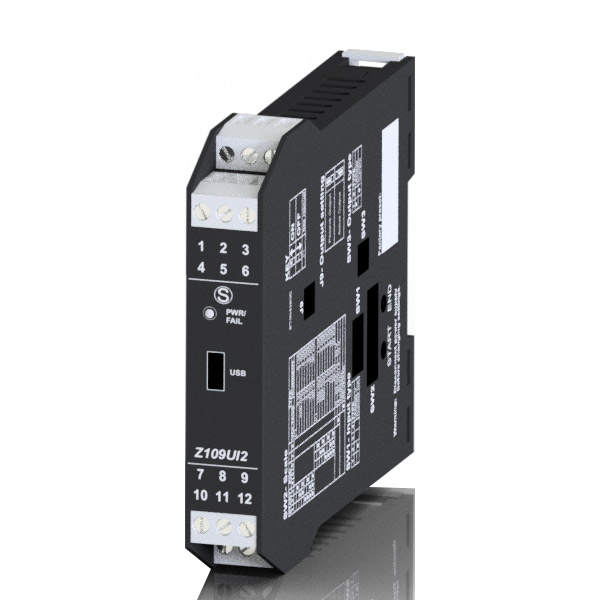

SENECA DC Current / Voltage Converter

Z109UI2-1 is a device that accepts mA/V signals able to convert it into mA/V standard signals. It’s configurable either for monopolar or bipolar inputs and all parameters are configurable through dip-switches. The device can power also all 2-wire sensors. A 3-way galvanic isolation among Power supply // input // output circuits assures the integrity of your datas. Un like the well known model Z109UI2 on the front side the jack 3.5 mm COM port has been replaced by a microUSB port.
Categories: , , ,

Description

ORDER CODE : Z109UI2-1
DESCRIPTION: DC current / voltage converter
INPUT: voltage (9 scales, from 100 mV to 20 V), current (bipolar up to 20 mA)
RE-TRANSMITTED OUTPUT: voltage (0..10 / 2..10 V), current (0..20 / 4..20 mA)
ACCURACY: 0,1% (current / voltage input)
SAMPLE FREQUENCY / RESOLUTION: from 240 sps (@ 11 bit + sign) up to 15 sps (@ 15 bit + sign)
POWER SUPPLY: 10..40 Vdc, 19..28 Vac 50-60 Hz
OPERATING TEMP: -10..60°C
POWER TRANSDUCER: 2 wire, 20 Vdc stabilized, 20 mA max protected against short circuit
INSULATION: 1.500 @ 3 way
SETTINGS: DIP switch, Software (PC Windows), App (Android)
CONNECTION: MicroUSB port on front side

Additional information

Weight 0.16 kg
