Z-8NTC

Call for Price

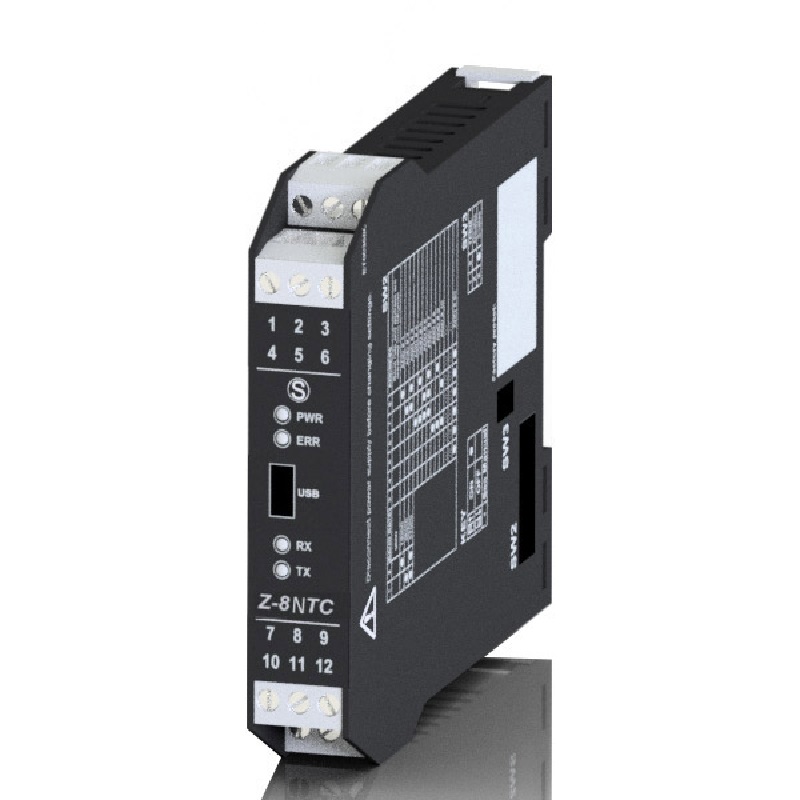

SENECA 8-ch NTC Module with ModBUS RTU protocol

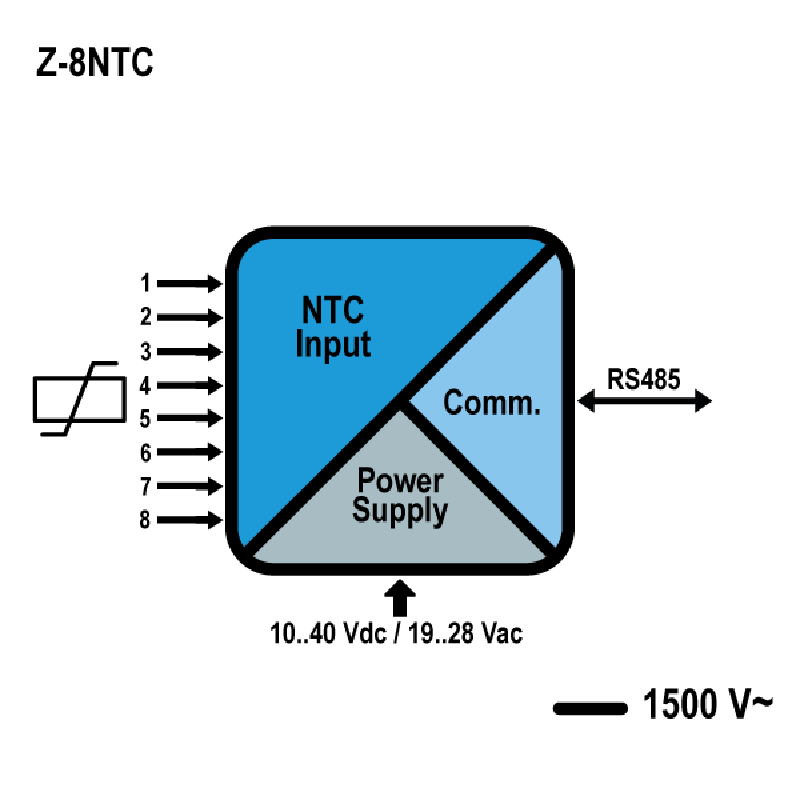

The Z-8NTC is a digital converter with eight measurement channels for resistors, NTC and PTC. The module is characterised by an overall three-point isolation of up to 1.500 Vac (measurement channels // Power supply // serial communication).
Categories: , , ,

Description

ORDER CODE : Z-8NTC
DESCRIPTION: CH-8 inputs from NTC/PTC thermoresistance / RS485
POWER SUPPLY: 10..40 Vdc; 19..28 Vac (50-60 Hz) bus powered
INPUT CHANNELS: CH-8 NTC/PTC thermoresistance with user-defined curve
INSULATION: 1,5 kVac @ 3 way
RESOLUTION: 16 bit
ACCURACY: 0,5%
OPERATING TEMPERATURE: -20..+70°C
COMMUNICATION: RS485 2 wire, ModBUS RTU slave protocol
CONNECTION: microUSB on front panel
PROGRAMMING: Via software EASY Setup or via DIP-switch
MOUNTING: DIN rail 46277, 35 mm
DIMENSION WXHXD: 17,5x100x112 mm

Additional information

Weight 0.16 kg

Download

DataSheet – Z-8NTC

Catalog – Distributed IO System Z-PC line
