Description
| ORDER CODEÂ : | VISUAL5-PC |

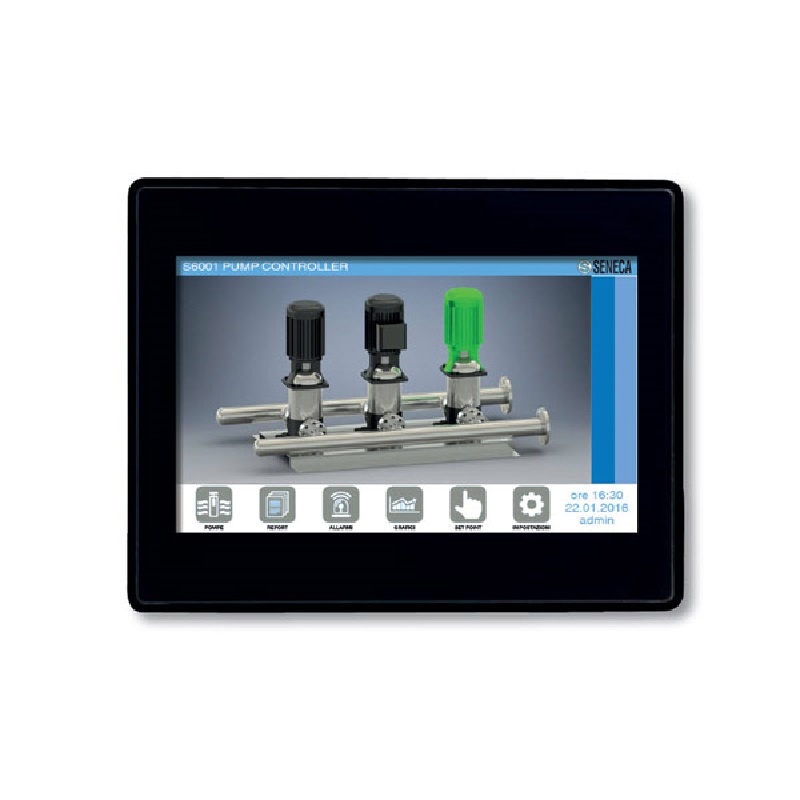

| DESCRIPTION: | 7″ HMI panel touchscreen |
| POWER SUPPLY: | 24 Vdc |
| POWER CONSUPTION: | 300 mA @ 24 Vdc |
| DISPLAY: | 7” TFT LCD, 800×480 px resolution, 16M colors |
| TOUCHSCREEN: | Resistive 4 wires |
| CONNECTIONS: | Nr. 1 USB Client 2.0 port Nr. 1 RS232/RS485/RS422 settable port Nr. 1 Ethernet port 10/100BaseT |
| OPERATING TEMPERATURE: | 0..+50°C |
| PROTECTION DEGREE: | Frontale IP66, Retro IP20 |
| PROCESSORE: | 32 bit RISC Cortex A8 1 GHz |
| FLASH MEMORY: | 4 GB |
| RAM: | 512 MB |
| RTC: | built-in |
| DIMENSIONS (WXHXD): | 187 x 147 x 29 mm |
| WEIGHT: | 600 g |
| STANDARD: | CE, UL |
