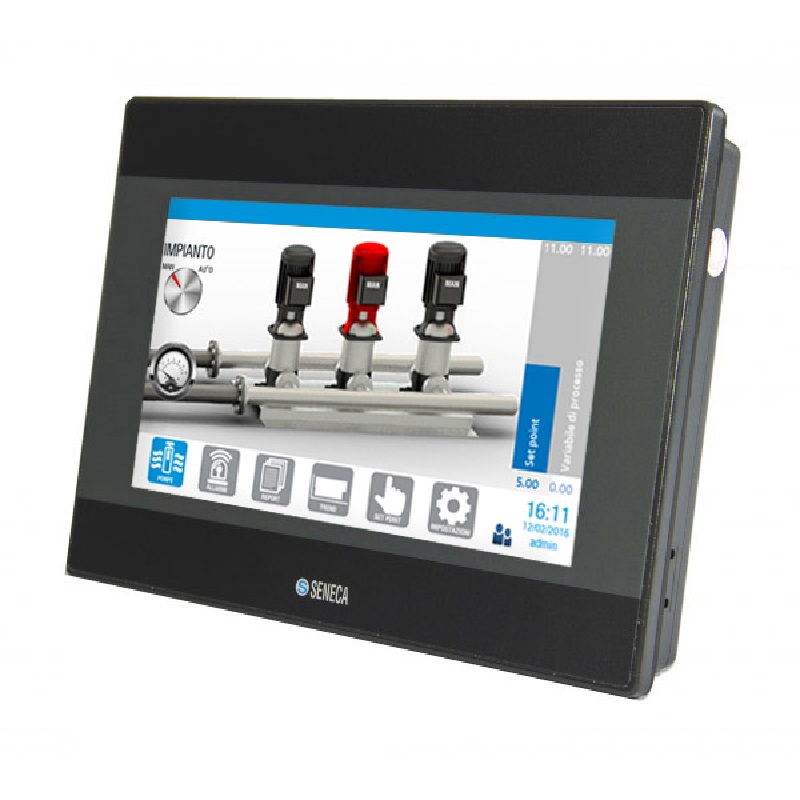

SENECA 7″ HMI panel touchscreen with ethernet port

SENECA expands its offer for the Z-PC with VISUAL, the new range of operator panels suitable for the most common industrial controllers and supervisory/automation systems.
VISUAL2 is a 7″ HMI equipped with a powerful Cortex A8 600MHz CPU, 128 MB of RAM, 1 ethernet port, high quality display LED backlights with a 800×480 pixel resolution and 2 serial ports (Nr. 1 RS232 and Nr. 1 RS485).
Categories: , ,

Description

ORDER CODE : VISUAL2E
DESCRIPTION: 7″ HMI panel touchscreen with ethernet port
POWER SUPPLY: 24 Vdc
POWER CONSUPTION: 500 mA @ 24 Vdc
DISPLAY: 7” TFT LCD, 800×480 px resolution, 65k colors
TOUCHSCREEN: Resistive 4 wires
CONNECTIONS: Nr. 1 USB Host 1.1 port
Nr. 1 10/100 Ethernet port
Nr. 1 RS232 port
Nr. 1 RS485 port
OPERATING TEMPERATURE: -20..+60°C
PROTECTION DEGREE: NEMA4 / IP65
CPU: Cortex A8 600MHz
FLASH MEMORY: 128 MB
RAM: 128 MB
RTC: built-in
DIMENSIONS (WXHXD): 200,4×146,5×34 mm
WEIGHT: 520 g
STANDARD: CE

Additional information

Weight 0.52 kg

Download

Catalog – HMI Visual Series
