VISUAL12

VISUAL12

Call for Price

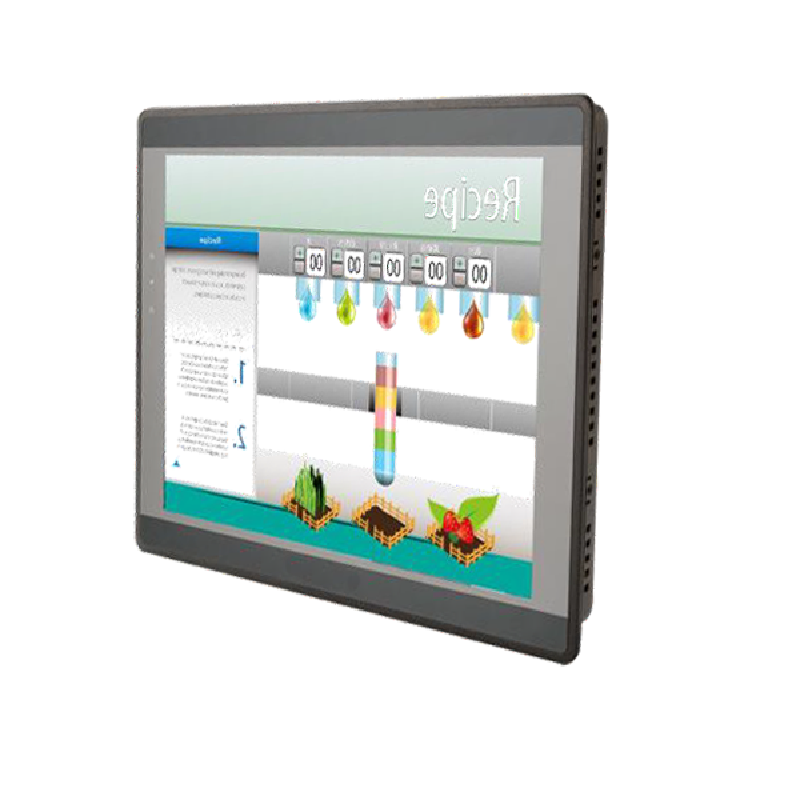

SENECA 15″ HMI panel touchscreen with Ethernet port with aluminium housing

SENECA expands its offer for the Z-PC with VISUAL, the new range of operator panels suitable for the most common industrial controllers and supervisory/automation systems.
VISUAL12 is a 15″ HMI, with aluminium housing, equipped with a powerful 1 GHz Cortex A8 CPU, 256 MB of RAM, high quality display LED backlights with a 1024×768 pixel resolution, 1 isolated serial port RS485 and 1 Ethernet port 10/100 BaseT.
Categories: , ,

Description

ORDER CODE : VISUAL4T
DESCRIPTION: 15″ HMI panel touchscreen with Ethernet port and aliminium housing
POWER SUPPLY: 24 Vdc
POWER CONSUPTION: 1000 mA @ 24 Vdc
DISPLAY: 15” TFT LCD, 1024×768 px resolution, 16M colors
TOUCHSCREEN: Resistive 4 wires
CONNECTIONS: Nr. 2 USB Host 2.0 port
Nr. 1 RS485 port
Nr. 1 Ethernet port 10/100BaseT
OPERATING TEMPERATURE: 0..+50°C
PROTECTION DEGREE: NEMA4 / IP65
PROCESSORE: 32 bit RISC Cortex A8 1 GHz
FLASH MEMORY: 256 MB
RAM: 256 MB
RTC: built-in
DIMENSION (WXHXD): 366x293x57 mm
WEIGHT: 2750 g
STANDARD: CE

Additional information

Weight 0.87 kg

Download

Catalog – HMI Visual Series
