SENECA Loop-Powered AC Current Transducer

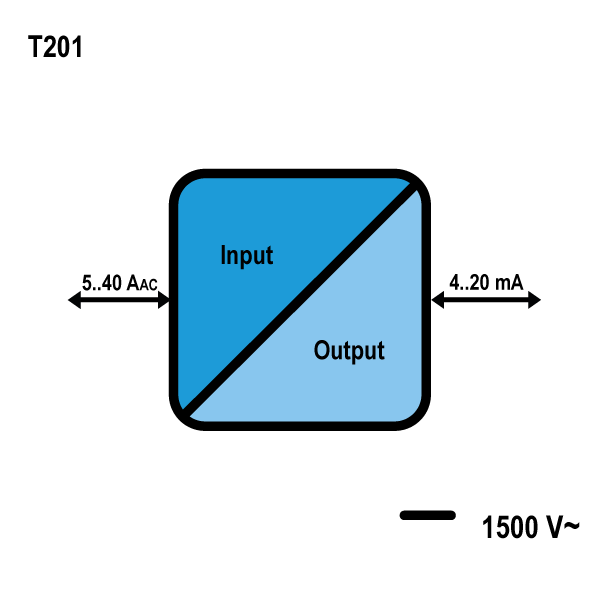

T201 is an AC current transducer (CT) for 4..20 mA current loops (loop powered 2 wires technology). The module’s main features are high precision, extremely compact size and wide configurability: eight pre-calibrated ranges, DIP-switch selected. T201 allows extremely low consumption and low output ripple and quick response to variations.
| ORDER CODE : | T201 |
| DESCRIPTION: | AC Current Transducer to DC current (4..20 mA – loop powered) |
| INPUT: | 8 selectable scales via DIP-SWITCH from ± 5 A to 40 A (AC) |
| DIMENSION: | 38 x 40 x 20 mm (Ø 12,5 mm) |
| POWER SUPPLY: | on the output loop 4..20 mA |
| ACCURACY: | better than 0,2% |
| SELF-CONSUMPTION: | < 50 mW |
| ANSWER SPEED: | checked by auxiliary filter |
| Weight | 0.06 kg |
|---|
