Description
| POWER SUPPLY | 5..30 Vdc (loop powered) |
| RESPONSE TIME | <220 ms (<620 ms with rejection 50-60 Hz) |
| ACCURACY CLASS | 0,1% |

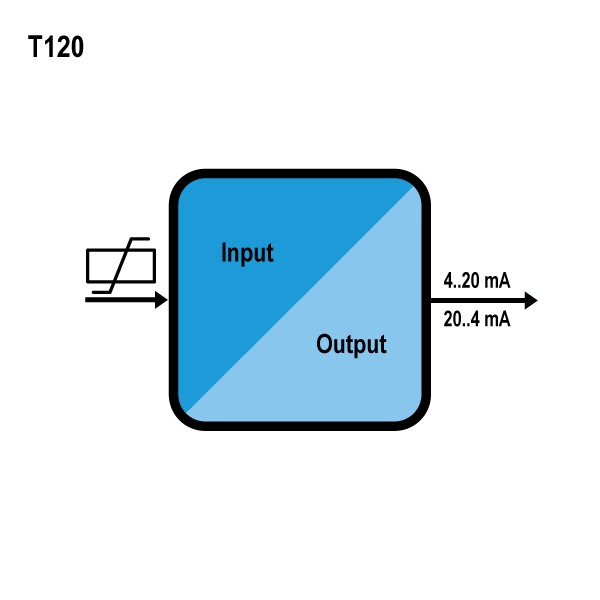

| INPUT CHANNEL | • Pt100 Standard: EN 60751/A2 (ITS-90) Measuring range: -200..+650°C Minimum Span: 20°C 2,3,4-wire connection • Ni100 Measuring range: -60..+650°C Minimum Span: 20°C 2,3,4-wire connection |
| OUTPUT CHANNEL | CURRENT (mA) 4..20, 20..4 mA (2-wire) |
| THERMAL DRIFT | < 100 ppm (30 ppm tipical) |
| PROGRAMMING | EASY SETUP software (programming kit: start / end of scale measurement, connection and RTD type, rejection, measurement filter, cable resistance, fault / over-range output) |
| OPERATING TEMPERATURE | -40..+85°C |
| CONNECTIONS | Spring clamps |
| DIMENSION (ØXH) | Ø 43,7 x 20 mm |
| STANDARD | CE |
| NORMS | EN 61000-6-4, EN 61000-6-2 |
