Description

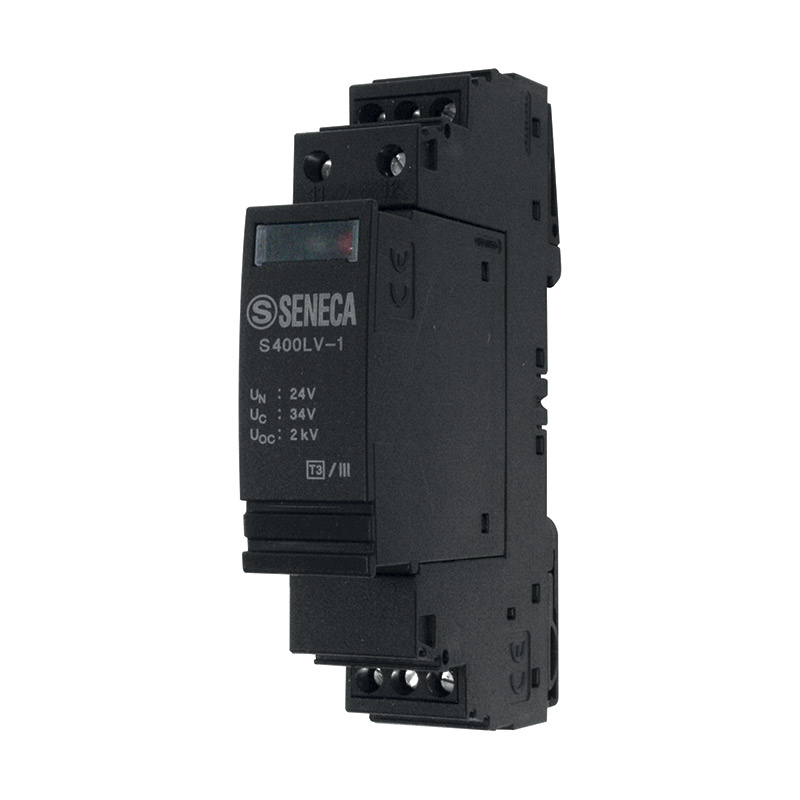

| CODE | S400LV-1 |
| DESCRIPTION | Type 3 surge protection for power equipment |
| TEST CLASSIFICATION // EN TYPE | III / T3 |
| NUMBER OF PORTS | One |
| NOMINAL VOLTAGE UN | 24 V AC (TN-S) |
| NOMINAL FREQUENCY | 50 Hz (60 Hz) |
| MAXIMUM CONTINUOUS OPERATING VOLTAGE UC | 34 V AC / 34 V DC |
| COMBINATION WAVE UOC | 2 kV |
| PROTECTION LEVEL UP – L-N / L-PE / N-PE | ≤ 0,18 kV / ≤ 0,55 kV / ≤ 0,55 kV |
| RESIDUAL CURRENT IPE | ≤ 5 μA |
| NOMINAL DISCHARGE CURRENT IN (8/20) ÎśS | 1 kA |
| SHORT-CIRCUIT CURRENT RATING ISCCR | 1,5 kA AC / 1 kA DC |
| RATED LOAD CURRENT IL AT 63 °C | 16 A AC |
| MAX. BACKUP FUSE WITH BRANCH WIRING | 16 A AC (B) / 10 A DC (gG) / 10 A DC (B) |
| MAXIMUM BACKUP FUSE FOR THROUGH WIRING | 16 A AC (B) / 10 A DC (gG) / 10 A DC (B) |
| AMBIENT TEMPERATURE (OPERATION) | -40 °C … 80 °C |
| DEGREE OF PROTECTION | IP20 |
