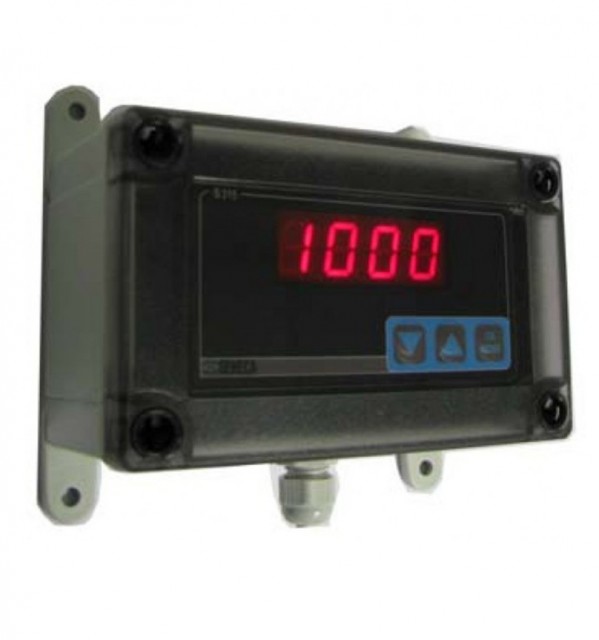

SENECA 4 Digit Loop Powered Display With 4-20 Ma Input Signal And IP66 Case
S315, the new indicator of the compact S-Series, is a loop powered, high-performance measurement. The version in IP66, electrically isolated, with a transparent front door opening provides high levels of functionality and safety in wet, dusty, aggressive and extreme temperatures. S315/IP66 reduce wiring and ensures easy installation in any position with external screws, cable included, no need to be integrated into a cabinet. It can be integrated into an existing facility for the acquisition of an analogue measurement and display in engineering units.
| ORDER CODEÂ : | S315-IP66 |
| DESCRIPTION: | 4 digit loop powered display with 4-20 mA input signal and IP66 case |
| ACCURACY: | Max error 0,05% |
| RESOLUTION: | Max 16 bit |
| THERMAL DRIFT: | 0,005%/°K |
| ANALOG INPUT: | Current 4-20 mA |
| POWER SUPPLY: | By loop (max 30 V) |
| VOLTAGE DROP VOLTAGE: | Max 7 V |
| CASE: | ABS, IP66, 130 x 80 x 60 mm |
| STANDARD: | EN 50298, EN 60529, EN 62262, UL 94 HB, NEMA 1, 4, 4X, 6 |
| Weight | 0.35 kg |
|---|
