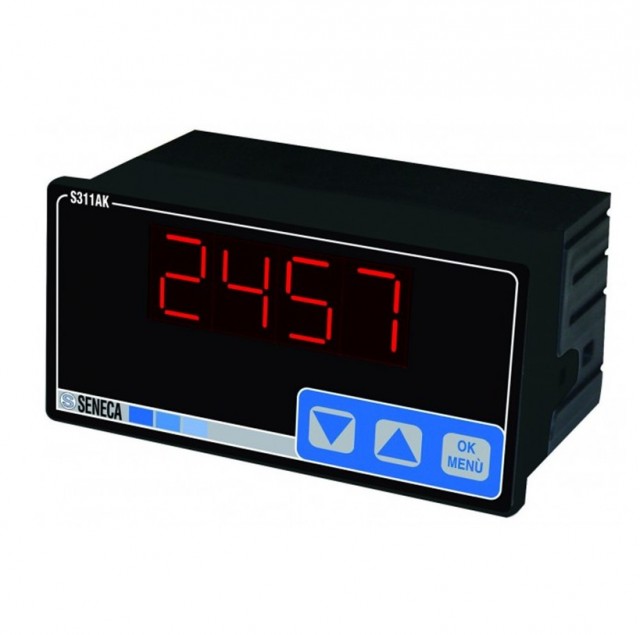

SENECA 4 Digit Display With I/V Analog Input, High Accuracy Class
The S311AK-4-L can read voltage (0-10 V) or current (0-20 mA) signals with or without loop powered measure. All parameters and display configuration can be set by menu. The input will be shown and scaled on 4 digit display according to the setup. S311AK-4-L has an excellent resolution, precision and temperature stability. The compact dimensions allow to improve the assembly in electrical switchboard.
| ORDER CODEÂ : | S311AK |
| DESCRIPTION: | 4 digit display with I/V analog input, high accuracy class |
| ACCURACY: | 0,05% |
| A/D CONVERTER: | 16 bit |
| PROTECTION DEGREE: | IP65 |
| THERMAL DRIFT: | 0,005%/°K |
| MAX POWER CONSUMPTION: | < 0,9 W |
| LOOP POWER SUPPLY: | yes |
| POWER SUPPLY: | 10-40 Vdc, 19-28 Vac |
| INPUT TYPE: | mA, V |
| DISPLAY: | 4 digit, LED |
| DIMENSION: | 96x48x40 mm |
| PROGRAMMING: | Front key menu |
| Weight | 0.18 kg |
|---|
