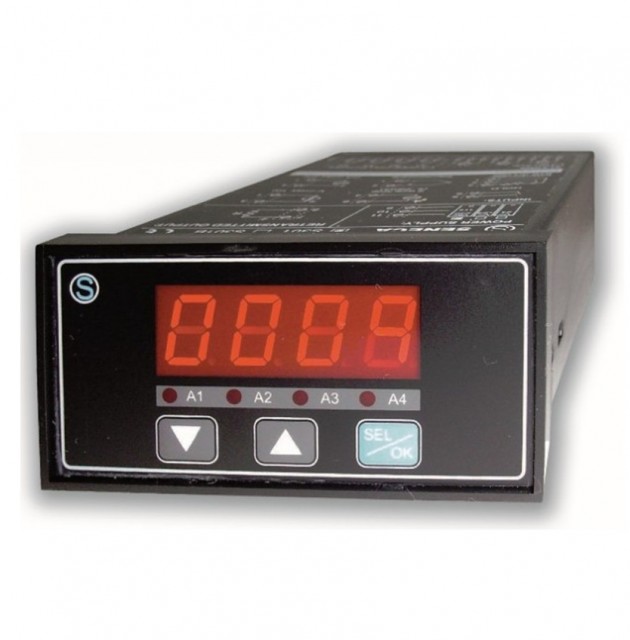

SENECA 4 Digit Indicator With Universal Input And Re-Transmitted Output
S301 is a 4 digit and 4 alarms programmable digital inditator with universal input (voltage, current, thermocouples, PT100, potentiometer), besides measurement and display of the input variable in technical measurement units. S301 offers also retransmission of the variable displayed on insulated analogue output and 4 programmable thresholds with various possible uses (optional extras). S301 is provided by input for hold function and peak value memory maximum and minimum.
| ORDER CODEÂ : | S301 |
| DESCRIPTION: | 4 digit indicator with universal input and re-transmitted output |
| DISPLAY: | LED 4 digit |
| INPUT: | V, mA, TC, Pt100, Ohm, con protezione da sovratensioni e sovracorrenti |
| CONTACT INPUT: | hold function |
| OUTPUT: | mA, V re-transmitted, galvanically isolated |
| ALARMS: | 3 SPDT relay alarms / 4 open collector alarms (optional board) |
| INTERFACE: | RS232 / RS485 (optional) |
| DIMENSIONS: | 96x48x148 mm (S301); 96x96x148 (S301B) |
| POWER SUPPLY: | 115-230 Vac; 24 Vac/dc |
| Weight | 0.47 kg |
|---|
