Call for Price

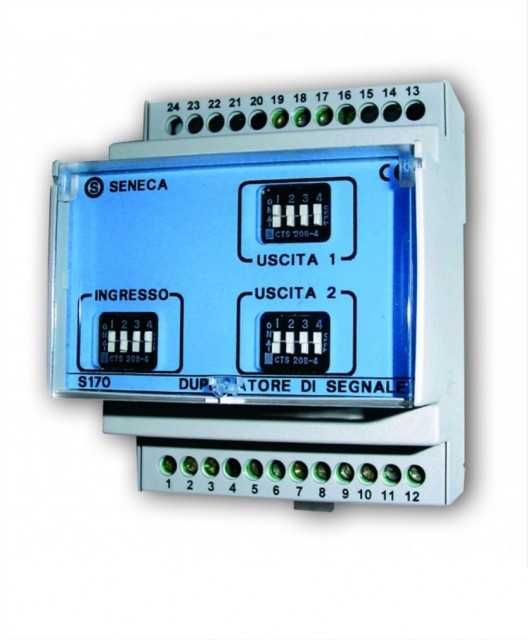

SENECA DC Duplicator – Isolator
S170 is a converter module for signal with 2 analog outputs with 3500 V galvanic insulation between input signal and output signals obtained through linear optocouplers. The device allows to convert analog input signal in two analog output signals (each output can be set in voltage or current mode).
| ORDER CODEÂ : | S170 |
| DESCRIPTION: | DC duplicator – isolator |
| POWER SUPPLY: | 115 / 230 Vac ± 10%, 50 – 60 Hz |
| INSULATION: | 3.500 Vac (power/input-output); 1.500 Vac (input/output) |
| INPUT: | Current 0..20 / 4..20 mA; voltage 0..5 / 1..5 / 0..10 / 2..10 Vdc |
| OUTPUT: | Current 0..20 / 4..20 mA; voltage 0..5 / 1..5 / 0..10 / 2..10 Vdc |
| Weight | 0.19 kg |
|---|
