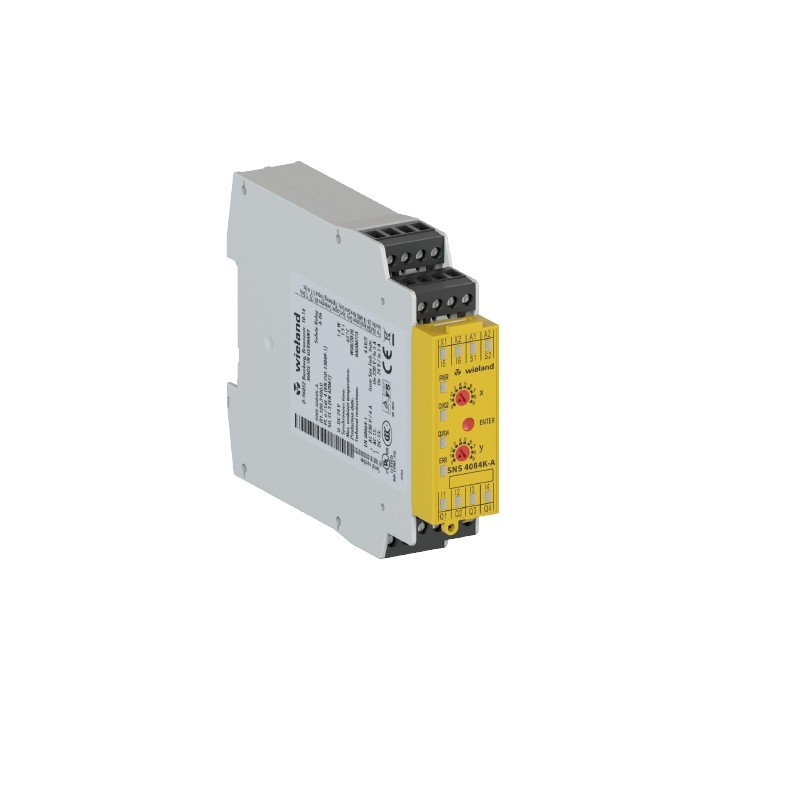

Description
Connection Data
| Detachable clamps | Yes |
|---|---|
| Type of electric connection | Screw connection |
Output Circuit
| Enabling paths | solid state (plus), safe output |
|---|---|
| Signaling paths | solid state (plus), not safe |
| Rated switching voltage, enabling paths DC | 30Â V |
| Max. thermal current Ith, enabling paths | 2Â A |
| Max. total current I² of all current path | 4 A² |
| Short-circuit protection (NO), max. fuse insert | short-circuit proof |
| Outputs, signalling function, undelayed, with contact | 2 |
| Outputs, safe, undelayed, with contact | 4 |
Control Circuit
| Nominal output voltage DC | 24Â V |
|---|---|
| Input current (safety circuit / reset circuit) | 3Â mA |
| max. ​peak current (safety circuit / reset circuit) | 3.8 mA |
| Min. switch-on time | 100Â ms |
| Recovery time tW | >Â 100Â ms |
| max. ​resistivity, per channel | 100 m |
| Evaluation inputs | 2-channel |
Supply Circuit
| Nominal voltage UN | DC 24 V |
|---|---|
| Rated consumption DC | 1.8Â W |
| Electrical isolation supply circuit – control circuit | No |
| Min. rated DC voltage for controls | 20.4Â V |
| Max. rated DC voltage for controls | 30Â V |
