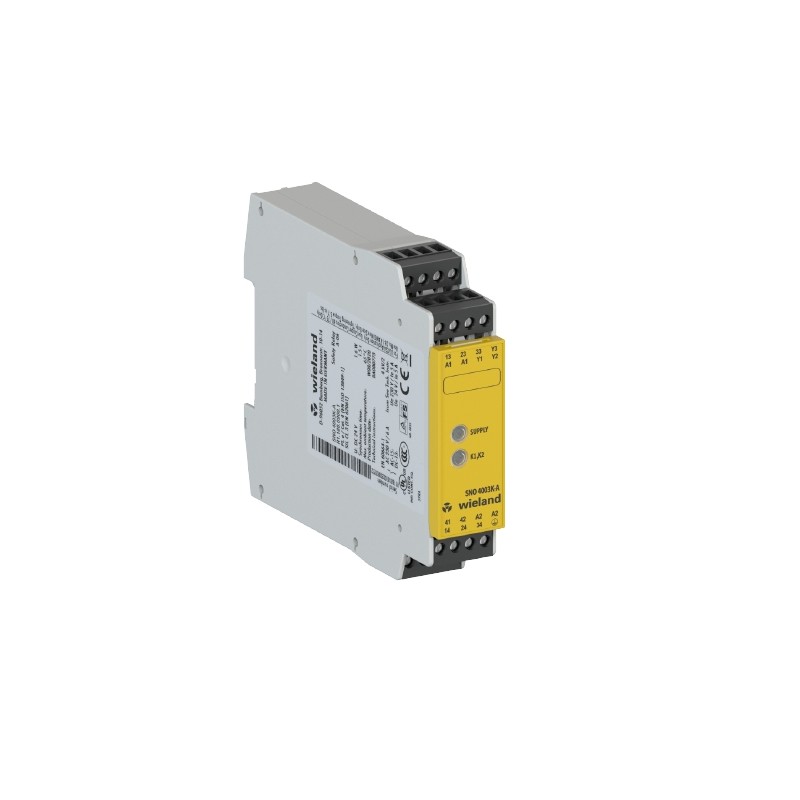

Description
Connection Data
| Detachable clamps | Yes |
|---|---|
| Type of electric connection | Screw connection |
Application
| Model | Basic device |
|---|---|
| Suitable for monitoring of magnetic switches | No |
| Suitable for monitoring of proximity switches | Yes |
| Suitable for monitoring of emergency-stop circuits | Yes |
| Suitable for monitoring of optoelectronic protection equipment | No |
| Suitable for monitoring of position switches | Yes |
Output Circuit
| Enabling paths | Normally open contact |
|---|---|
| Signaling paths | Opener |
| Contact material | Ag-alloy, gold-plated |
| Rated switching voltage, enabling paths AC | 230Â V |
| Rated switching voltage, enabling paths DC | 24Â V |
| Rated switching voltage, signaling paths AC | 230Â V |
| Rated switching voltage, signaling paths DC | 24Â V |
| Max. thermal current Ith, enabling paths | 8Â A |
| Max. thermal current Ith, signaling paths | 5Â A |
| Max. total current I² of all current path | 9 A² |
| Application category AC-15 (NO) | Ue 230V, Ie 5A |
| Application category DC-13 (NO) | Ue 24V, Ie 5A |
| Short-circuit protection (NO), max. fuse insert | 6 A class gG fuse, fuse integral < 100 A²s |
| Mechanical life | 107Â switching cycles |
| Outputs, signalling function, undelayed, with contact | 1 |
| Outputs, safe, undelayed, with contact | 3 |
Control Circuit
| Nominal output voltage DC | 24Â V |
|---|---|
| Input current (safety circuit / reset circuit) | 90Â mA |
| max. ​peak current (safety circuit / reset circuit) | 1500 mA |
| Response time tA1 | 60Â ms |
| Response time tA2 | 180 ms |
| Min. switch-on time | 60Â ms |
| Recovery time tW | >Â 200Â ms |
| Release time tR | <Â 80Â ms |
| max. ​resistivity, per channel | ≤ (5 + (1,333 x UB / UN – 1) x 200) Ω |
| Type of switch function of the inputs | Normally open contact |
| Evaluation inputs | 1-channel |
Supply Circuit
| Nominal voltage UN | AC 115-120 V |
|---|---|
| Rated consumption AC | 2.3Â VA |
| Rated frequency min. | 50Â Hz |
| Rated frequency max. | 60Â Hz |
| Operating voltage min. | 97.8Â V |
| Operating voltage max. | 132Â V |
| Electrical isolation supply circuit – control circuit | Yes |
| Min. rated control supply voltage at AC 50 Hz | 97.8Â V |
| Max. rated AC voltage for controls, 50 Hz | 132Â V |
| Rated control supply voltage at AC 60HZ | 97.8Â V |
| Rated control supply voltage at AC 50HZ | 132Â V |
