SENECA Datalogger With Remote Monitoring, Diagnostic And Plant Control Functions

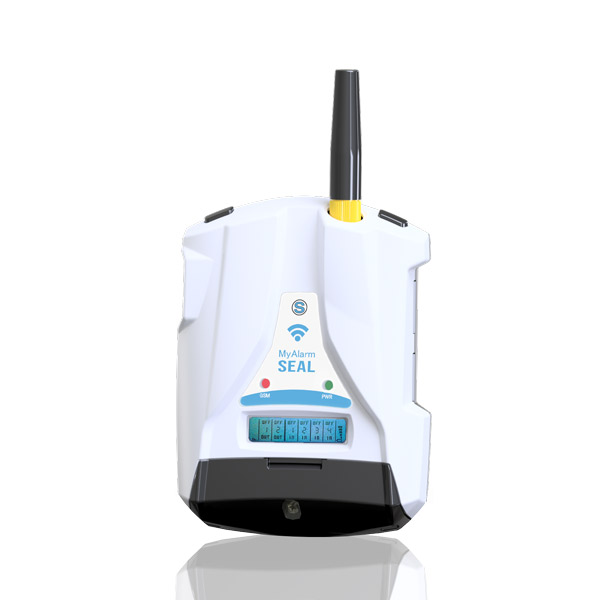

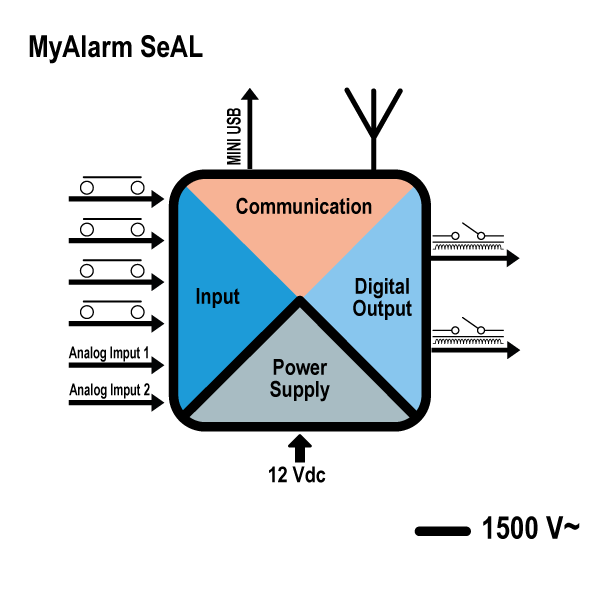

MyAlarm SEAL is a datalogger that can meet the growing demands of data acquisition, analysis in real time and integration with IT systems existing in automation and system/process monitoring. In line with the new productivity and communication models of Industry 4.0 and Internet of Things, it is characterized by a GSM/GPRS modem, 4 Digital Inputs and 2 Analog Inputs, voice alarms/audio controls with DTMF tones and the support of http post, MQTT, CloudBOX compatibility.

This unit supports different types of SIM cards and has an 8MB Flash memory, a slot for microSD expandable up to 32GB and multi-tasking real-time operating system. Like all SENECA advanced dataloggers,
MyAlarm SEAL is fitted also with a built-in UPS that allows an operating autonomy of up to 1 hour in case of lack of primary power supply. This unit guarantees open and flexible programming, thanks to a dedicated environment for the development of control logics (SeAL) and a data import/display programing environmente (Log Factory). The combined use of this datalogger with the Cloud-IoT solution proposed by SENECA (Cloud BOX) completes the possibility of data management through responsive webpages with customizable dashboards and widgets. Options available are Nr.2 digital outputs – relay board.
