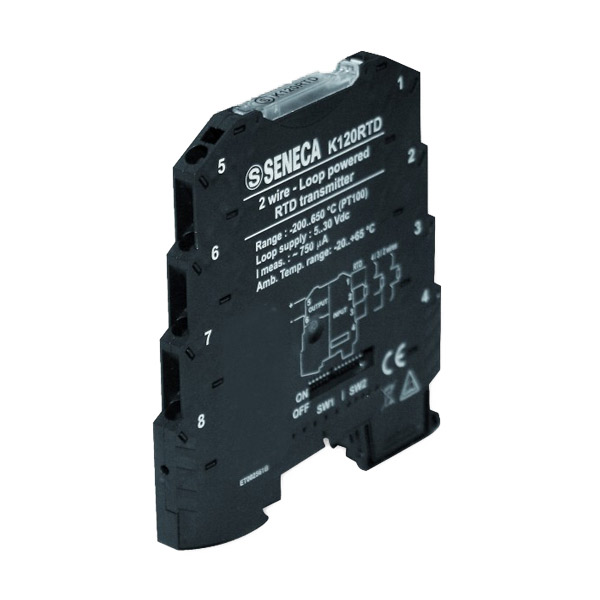

SENECA Pt100, Ni100 Loop Powered Converter

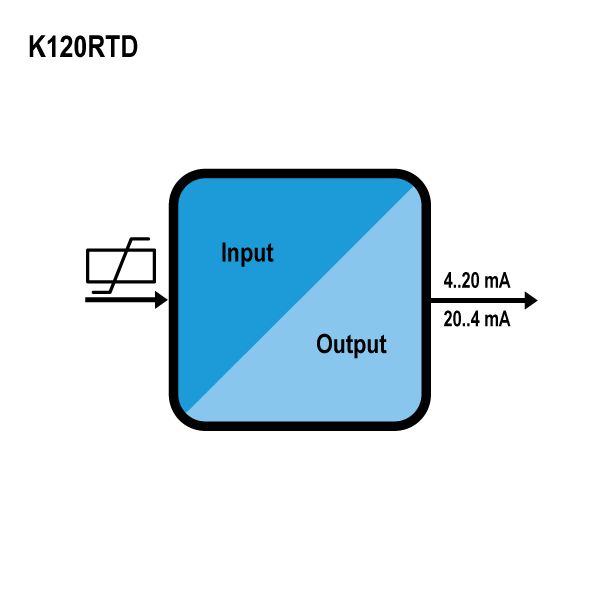

K120RTD is a converter for Thermoresistance PT100/Ni100 with 2,3,4 wires and convert / isolate it into 4..20mA loop powered signal. It’s completely confi gurable through dip switches or PC software. The output signal is not isolated from the input one.
| ORDER CODEÂ : | K120RTD |
| DESCRIPTION: | Pt100, Ni100 loop powered converter |
| INPUT: | Pt100 (EN 60751/A2 – ITS90), -200..+650 °C, Ni100 (-60..+250 °C min span 20°C |
| OUTPUT: | current 4..20, 20..4 mA |
| MAX CONSUMPTION: | 24 mA |
| RESOLUTION: | 16 bit |
| PRECISION CLASS: | 0,1% or 0,1°C |
| POWER SUPPLY RANGE: | 5..30 Vdc |
| DIMENSIONS WXHXD: | 6,2×93,1×102,5 mm |
| Weight | 0.075 kg |
|---|
