S203TA
S203TA

S203TA

Call for Price

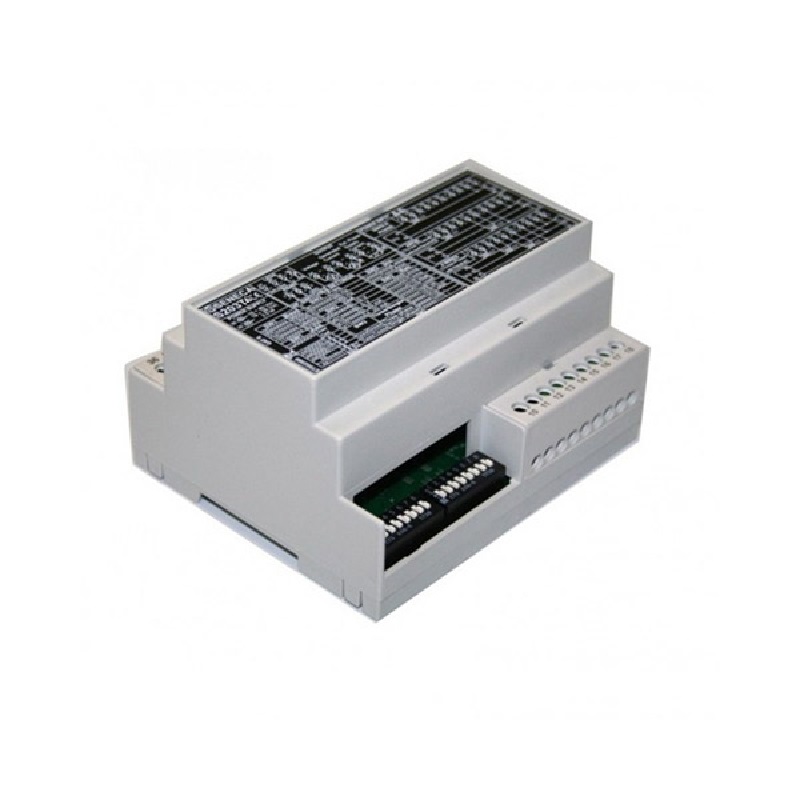

SENECA AC triple-phase network analyzer (5 Arms max input

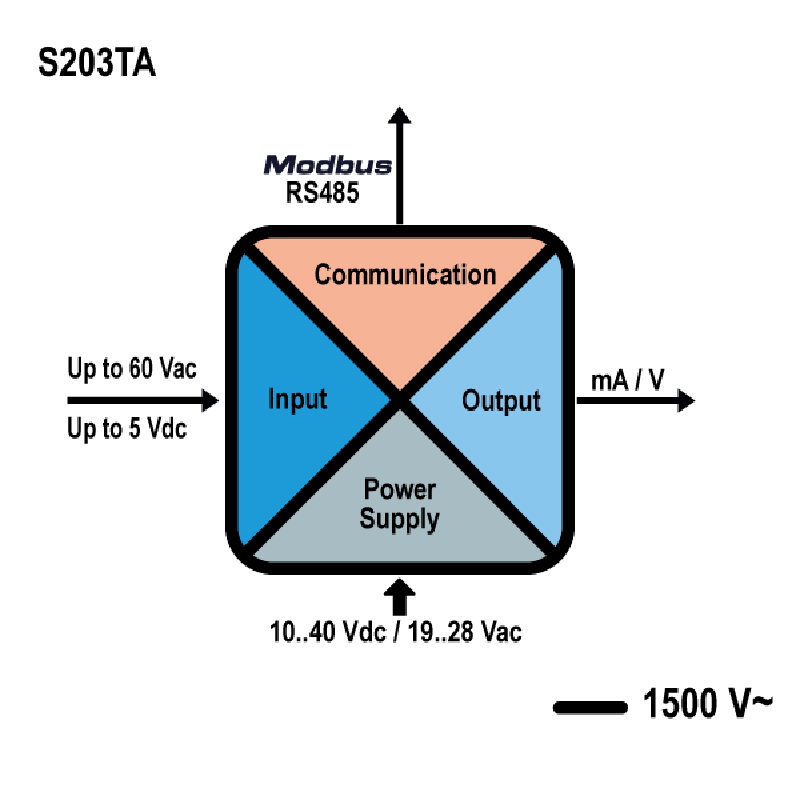

S203TA is a complete three-phase network analyser suited for use with up to 600 Vac voltage range and up to 5A current range. The instrument provides all the following electrical measurable variable: Vrms, Irms, Watt, Var, Va, Frequency, Cosφ. Measurements are availables through Modbus serial communication or through analogue retransmission (ma or V). A 3-way galvanic isolation among Power supply // input // RS485 circuits assures the integrity of your datas.
Categories: , , , , , , ,

Description

ORDER CODE : S203TA
DESCRIPTION: Advanced triple phase network analyzer up to 5 Arms input
POWER SUPPLY: 10–40 Vdc, 19-28 Vac (50-60 Hz)
SERIAL INTERFACE: isolated RS485, ModBUS RTU
VOLTAGE INPUT: max 600 Vac (50-60 Hz)
CURRENT INPUT: up to 5 Arms
MEASURED VARIABLES: Vrms, Irms, Watt, Var, VA, frequency, cosφ, energy
RE-TRANSMITTED ANALOG OUTPUT: voltage / current
RE-TRANSMISSION ERROR: 0,1%
PRECISION CLASS: 0,2%
INSERTION: single phase, 4 wires triple phase
CONNECTIONS: TA secondary max 5A, typical precision 0,5%

Additional information

Weight 0.24 kg

Download

Catalog – S203 Series Energy Power Meters
