SENECA AC/DC voltage to DC current/voltage converter with ModBUS interface

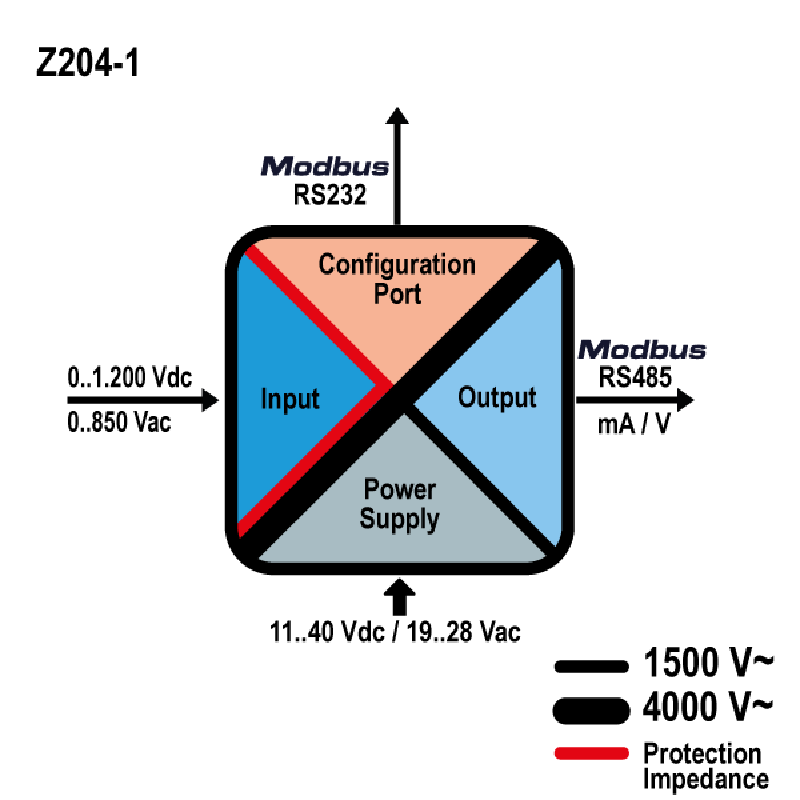

Z204-1 accepts an alternate or direct voltage (up to 1.200 Vdc and 850 Vac) TRMS and provides an isolated analog output (mA or V). It disposes also of dip switches for quick configuration. It’s available also a RS485 Modbus RTU interface. A 3-way galvanic isolation (up to 4 KV) among input and power supply/output ports assures the integrity of your datas.

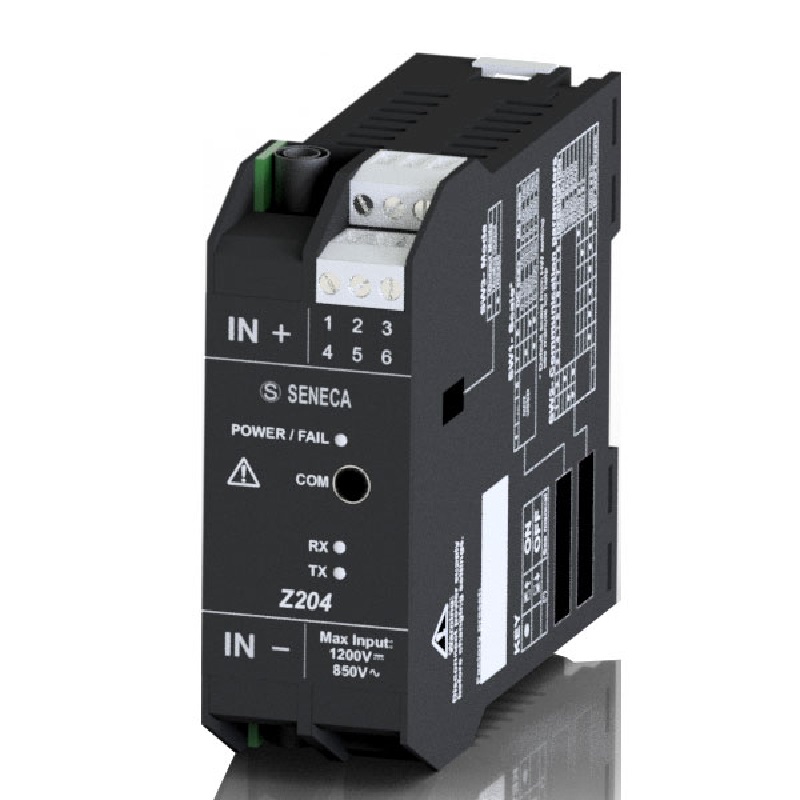

Z204-1 is equipped with a front connector for programming and functional LED showing power / faults and data transmission.
| ORDER CODE : | Z204-1 |
| DESCRIPTION: | AC/DC voltage to DC current/voltage converter with ModBUS interface |
| VOLTAGE INPUT: | Up to 1000 VAC/DC |
| ANALOG OUTPUT: | mA/V |
| MODBUS INTERFACE: | RS485 back connector, RS232 front connector |
| ACCURACY: | INPUT CL 0.5, OUTPUT CL.0.1 TRMS |
| INSULATION: | 4.000 VAC |
| POWER SUPPLY: | 10-40Vdc / 19-28Vac |
| OPERATING TEMPERATURE: | -20..65 ºC |
| Weight | 0.16 kg |
|---|
