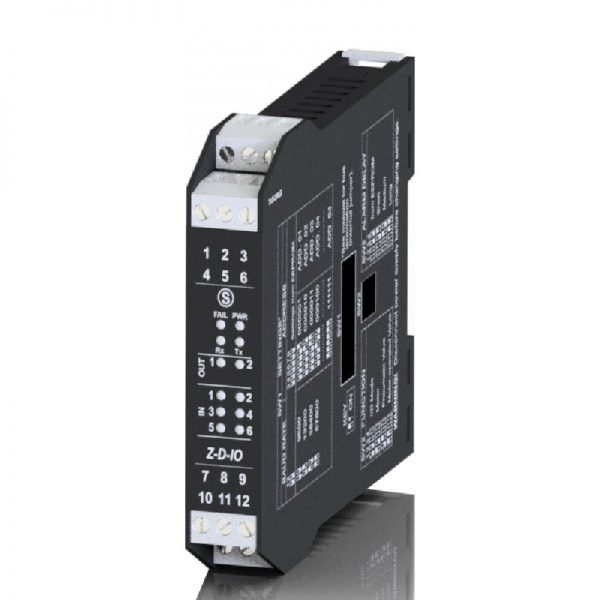

SENECA 8-CH, 6 digital input – 2 digital outputs control module

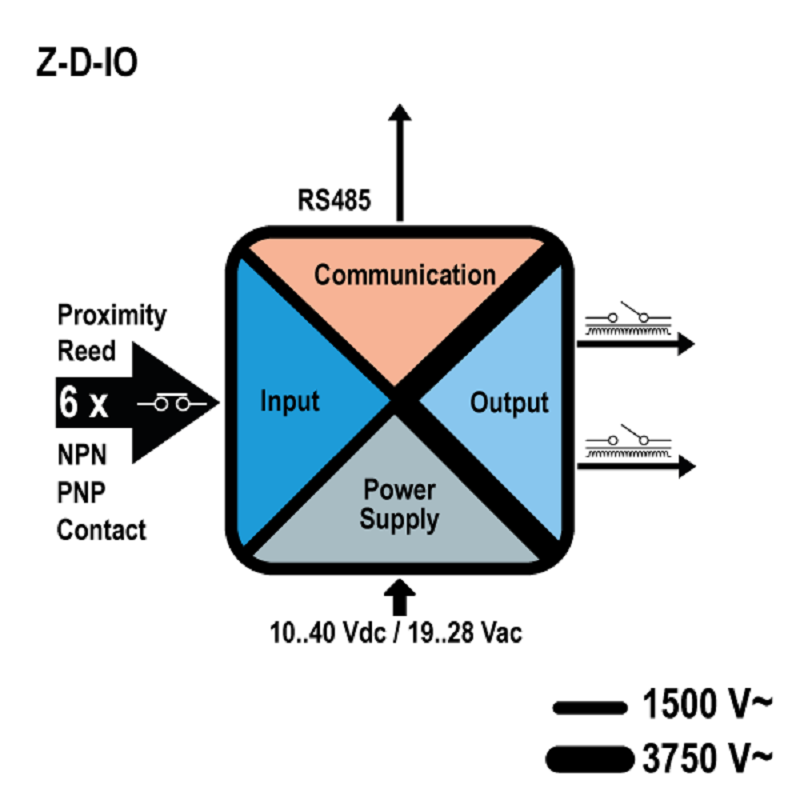

Z-D-IO has N.6 digital inputs, N.2 SPST relays, capacity of 2Aac, 250 Vac. It can be used as simple Input/Output module or, through dip-switches, is possible to acticate special functions to drive motors, pneumatic and motorised valves.The module is ModBUS Slave and can be coupled with any ModBUS Master device. A 3-way galvanic isolation among Power supply // output // RS485 circuits assures the integrity of your datas.
| ORDER CODE : | Z-D-IO |
| DESCRIPTION: | 8-CH, 6 digital input – 2 digital outputs control module |
| POWER SUPPLY: | 10..40 Vdc, 19..28 Vac |
| INSULATION: | 1,5 kVac (input/other circuits), 3,75 kVac (output/other circuits) |
| INPUT: | 6-CH reed, proximity, pnp, npn, contact etc. |
| OUTPUT: | 2-CH relay 5 A, 250 Vac |
| OPERATING MODE: | I/O slave, time based control logic |
| CONTROL LOGIC: | IEC 61131-2 type 1 motor control, valves, limit switch, alarms |
| PROTOCOL: | ModBUS RTU slave |
| Weight | 0.16 kg |
|---|
