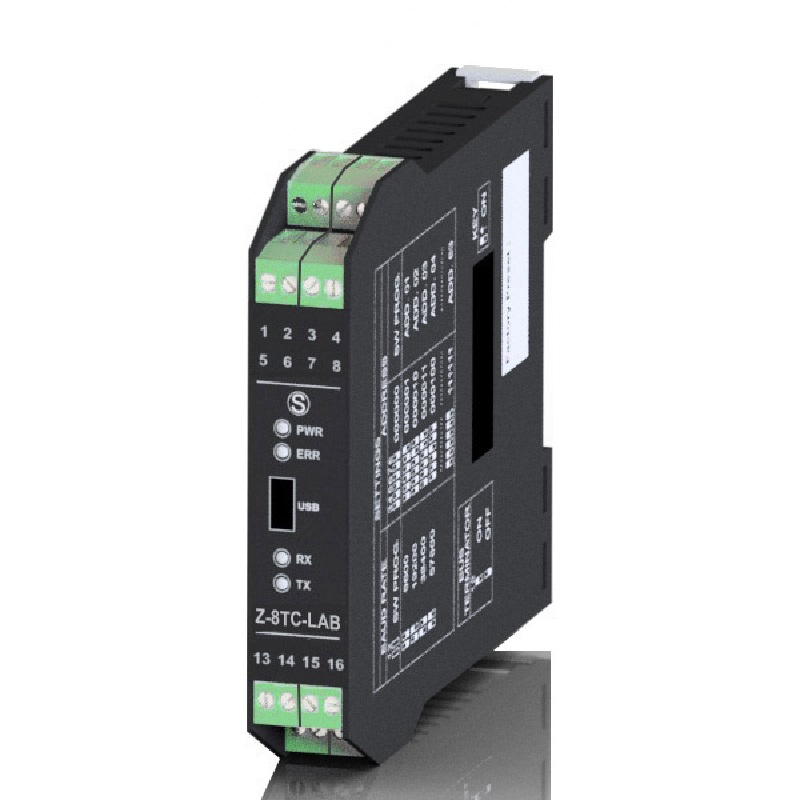

SENECA CH-8 thermocouple input module / RS485 with two-way pull-out terminals

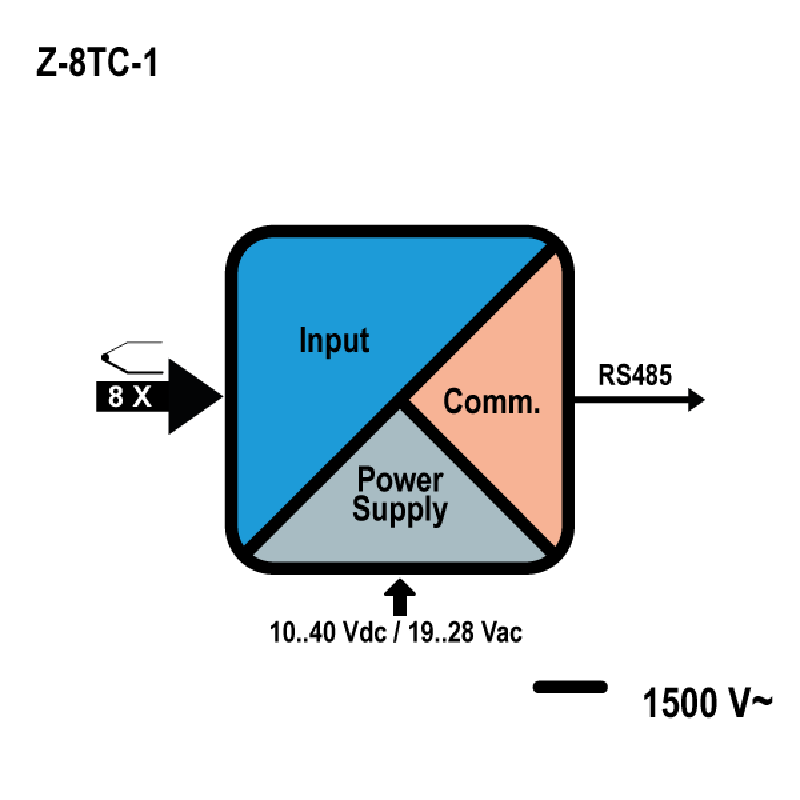

The Z-8TC-LAB is a digital thermocouple converter, with eight measurement channels, isolated from the power supply and serial communication line up to 1.5 kVac. The same isolation is provided between channels belonging to different groups of terminals: the module has total isolation of six points.
This laboratory version, compared to the more well-known Z-8TC-1 converter, is characterized by two-way terminals and the same input wiring for both the upper terminals and the lower terminals in order to facilitate quick couplings.
