Description

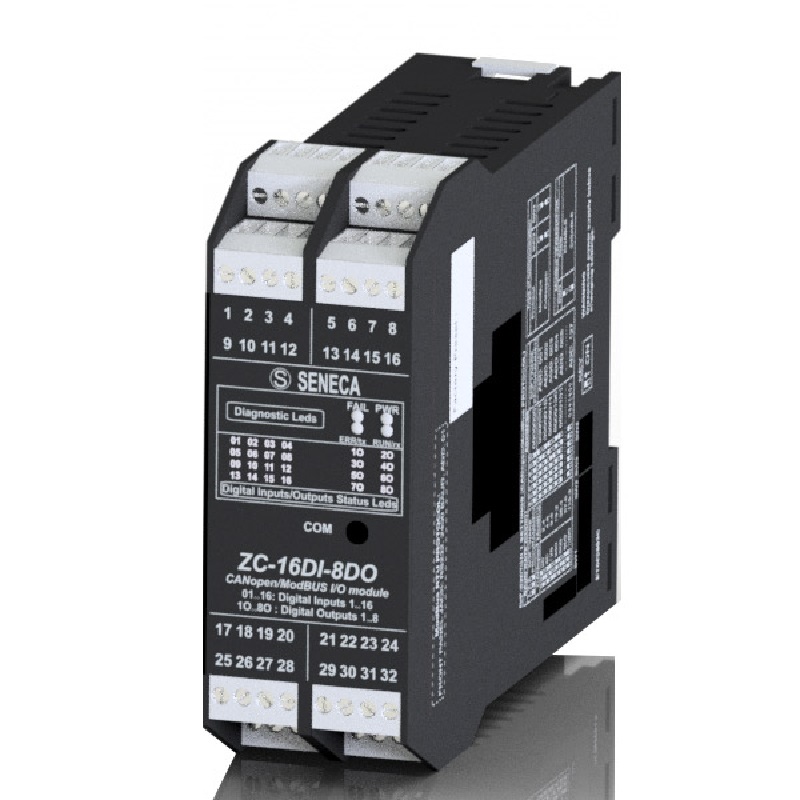

| ORDER CODEÂ : | ZC-16DI-8DO |

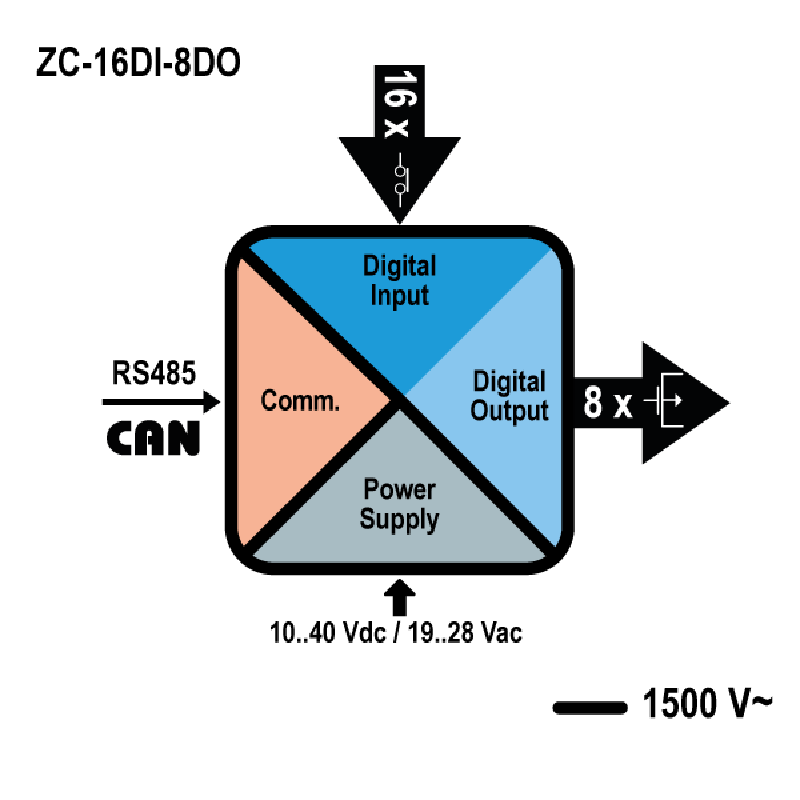

| DESCRIPTION: | 16 CH digital input – 8 CH digital output CANopen / ModBUS |
| COMMUNICATION: | CANopen 401 v.2.01 RS485 two wires, ModBUS RTU slave protocol, 64 max nodes |
| POWER SUPPLY: | 10..40 Vdc, 19..28 Vac |
| MAX POWER CONSUMPTION: | 2,5 W |
| INSULATION: | 1,5 kVac (3 way) |
| RESPONSE TIME: | 1,2..2,5 ms |
| OPERATING TEMPERATURE: | -10..+65°C |
| DIMENSION: | 35x100x112 mm |
| DIGITAL INPUT: | 16 channels; IEC EN 61131-2; Nr 8 counters @32 bit (max 10 kHz); TPDO < 1 ms |
| DIGITAL OUTPUT: | 8 channels, 32 bit (max 10 kHz); mosfet, max 500 mA per channel, Vext 5..30 Vdc; RPDO < 1,25 ms |
