Call for Price

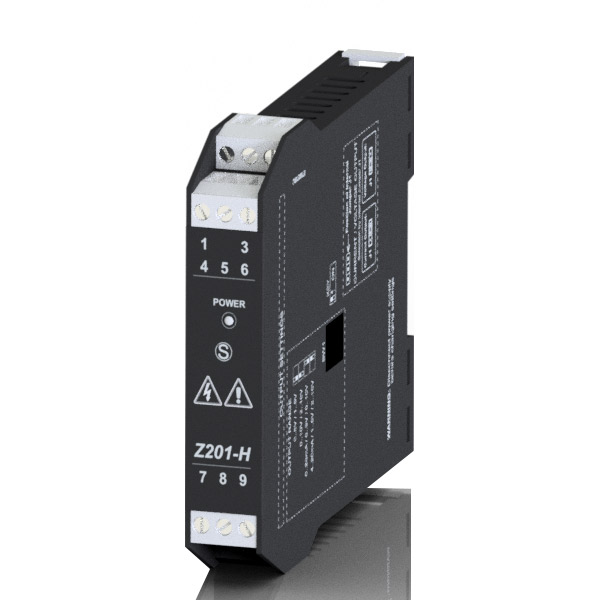

SENECA AC Current To DC Isolator / Converter (Power Sup. 85..265 Vac/Dc)
Z201-H accepts an alternate current (5 or 10Aac) and provides an isolated analog output (mA or V). It disposes also of dip switches to set the output ranges. It can be requested with low or high power supply. A 3-way galvanic isolation among power supply // input // output circuits assures the integrity of your datas.
| ORDER CODEÂ : | Z201-H |
| DESCRIPTION: | AC current to DC isolator / converter, 85..265 Vac/dc |
| POWER SUPPLY: | 85..265 Vac/dc |
| INPUT: | Current (0..5, 0..10 A) |
| OUTPUT: | Current (0..20, 4..20 mA), voltage (0..5, 0..10, 1..5, 2..10 V) |
| ACCURACY: | 0,3% |
| MAX ISOLATION: | 3.750 Vac |
| Weight | 0.16 kg |
|---|
