SENECA AC Current To DC Isolator / Converter (P.Sup. 19..40 Vdc, 19..28 Vac)

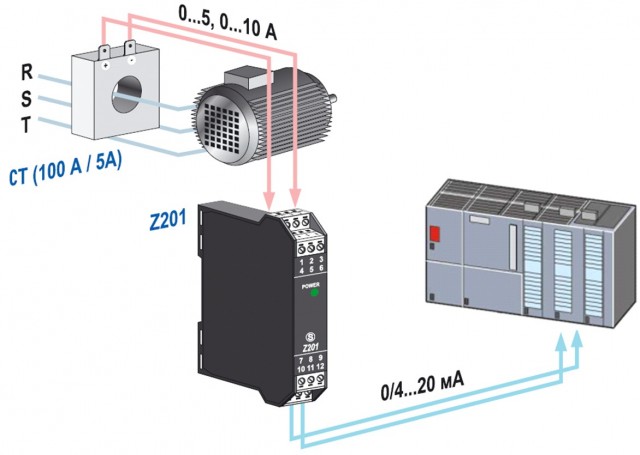

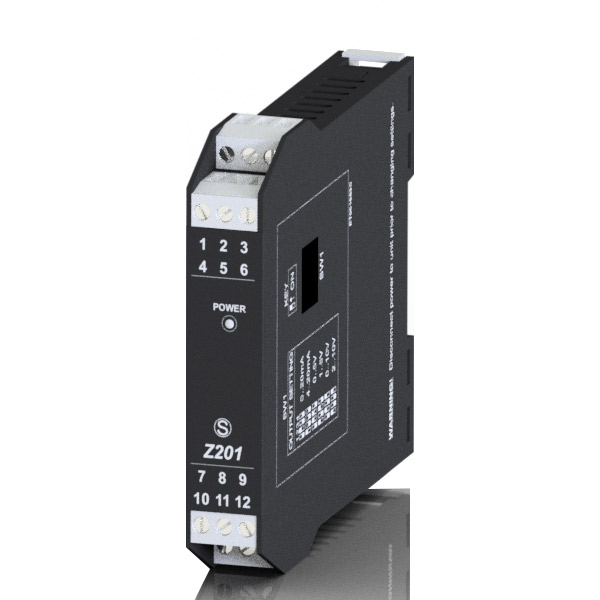

Z201 accepts an alternate current (5 or 10Aac) and provides an isolated analog output (mA or V). It disposes also of dip switches to set the output ranges. It can be requested with low or high power supply. A 3-way galvanic isolation among power supply // input // output circuits assures the integrity of your datas.
| ORDER CODEÂ : | Z201 |
| DESCRIPTION: | AC current to DC isolator / converter |
| INPUT: | Current (0..5, 0..10 A) |
| OUTPUT: | Current (0..20, 4..20 mA), voltage (0..5, 0..10, 1..5, 2..10 V) |
| ACCURACY: | 0,3% |
| POWER SUPPLY: | 19..40 Vdc, 19..28 Vac |
| MAX ISOLATION: | 3.750 Vac |
| Weight | 0.16 kg |
|---|
