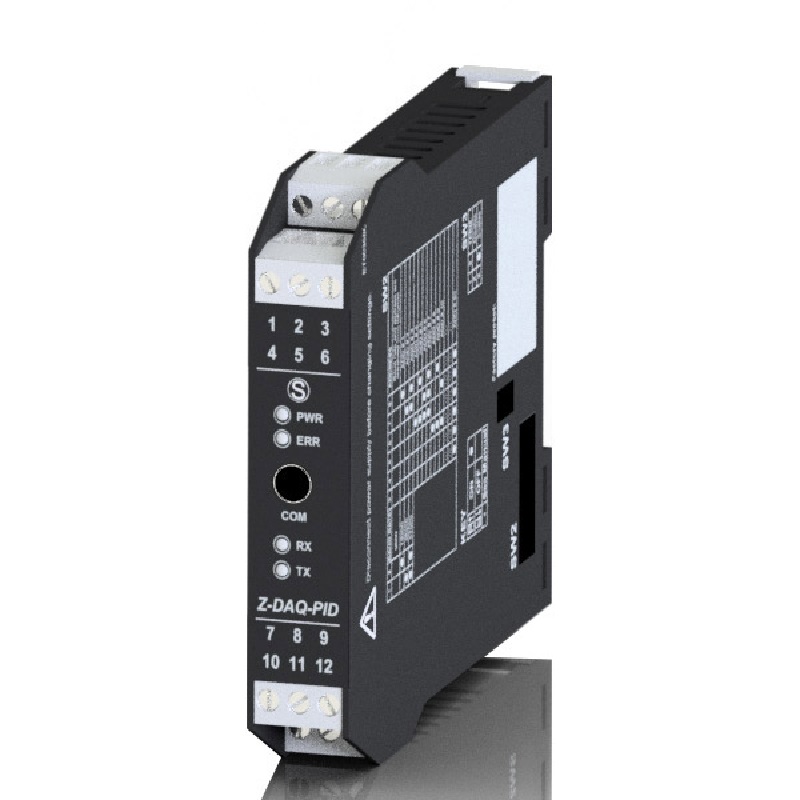

SENECA I/O universal module with PID regulation

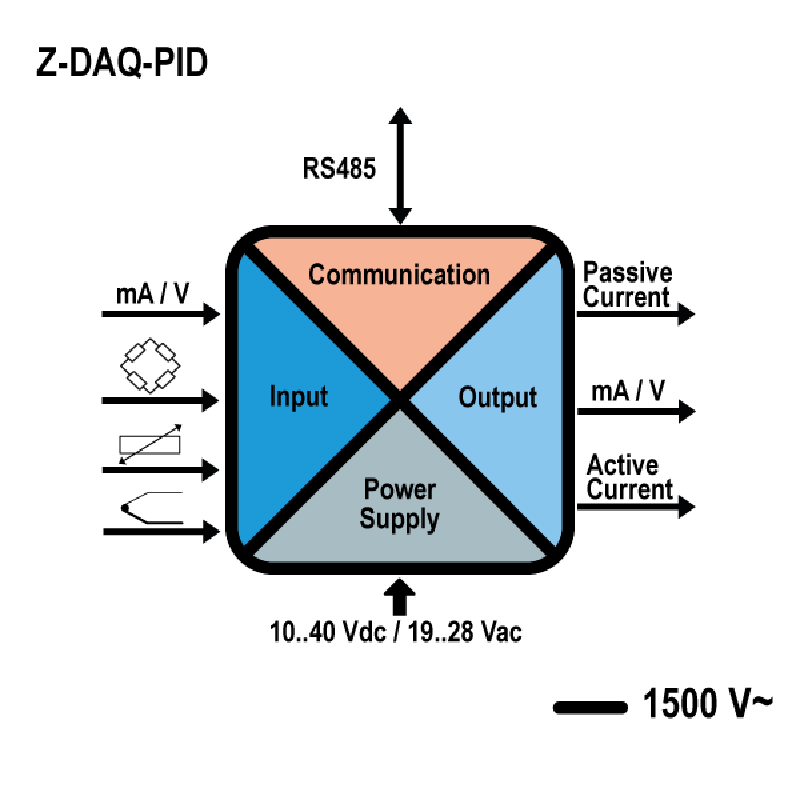

Z-DAQ-PID has a universal analog input (mA, V, PT100, TC, Ohm) and an active output 4..20 mA or 0..20 mA for continuos or PWM (pulse-width modulation) loop control. This functionality can be disabled and the unit can be used as analog input and analog output indipendent from each other. The module is ModBUS Slave and can be coupled with any ModBUS Master device. A 3-way galvanic isolation among Power supply // input // RS485 circuits assures the integrity of your datas.
| ORDER CODEÂ : | z-daq-PID |
| DESCRIPTION: | I/O universal module with PID regulation |
| POWER SUPPLY: | 10..40 Vdc; 19..28 Vac |
| OPERATING MODE: | I/O conversion with PID, I/P conversion without PID, manual (fixedoutput) |
| INPUT: | Voltage, current, potentiometer, thermocouple (TC), thermoresistance (RTD), millivoltmeter |
| OUTPUT: | Voltage, active/passive current |
| INSULATION: | 1.500 Vac |
| ADDRESS & BAUD RATE SETTINGS: | Dip-Switch |
| AUTOMATIC COMMUTATION: | RS485 – RS232 |
| Weight | 0.16 kg |
|---|
