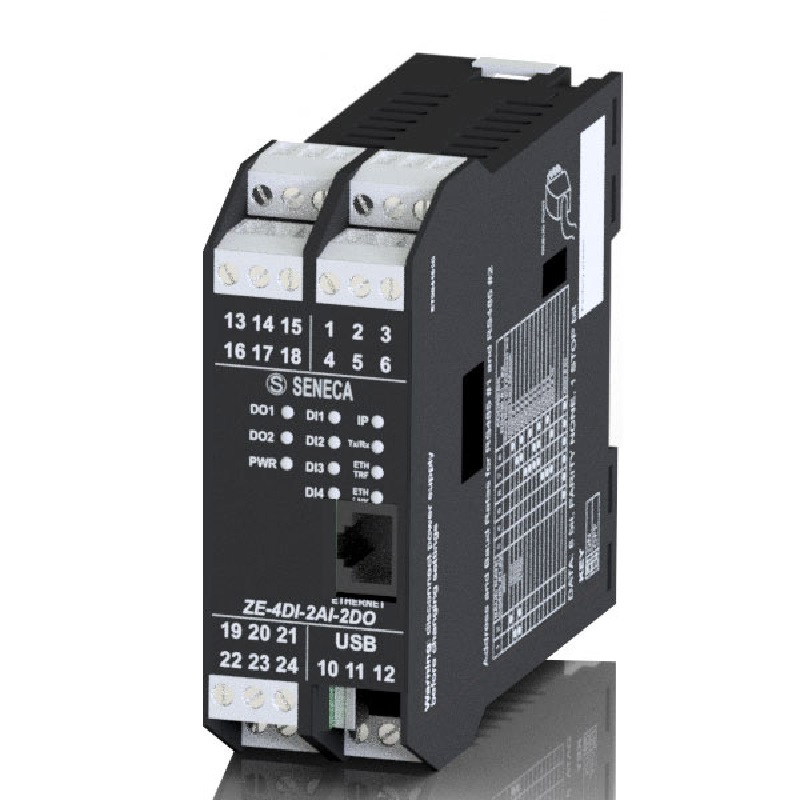

ZE-4DI-2AI-2DO

Call for Price

SENECA 4 CH Digital Input/ 2 CH Analogue Input, 2 CH Digital Output Modbus RTU-Modbus TCP-IP

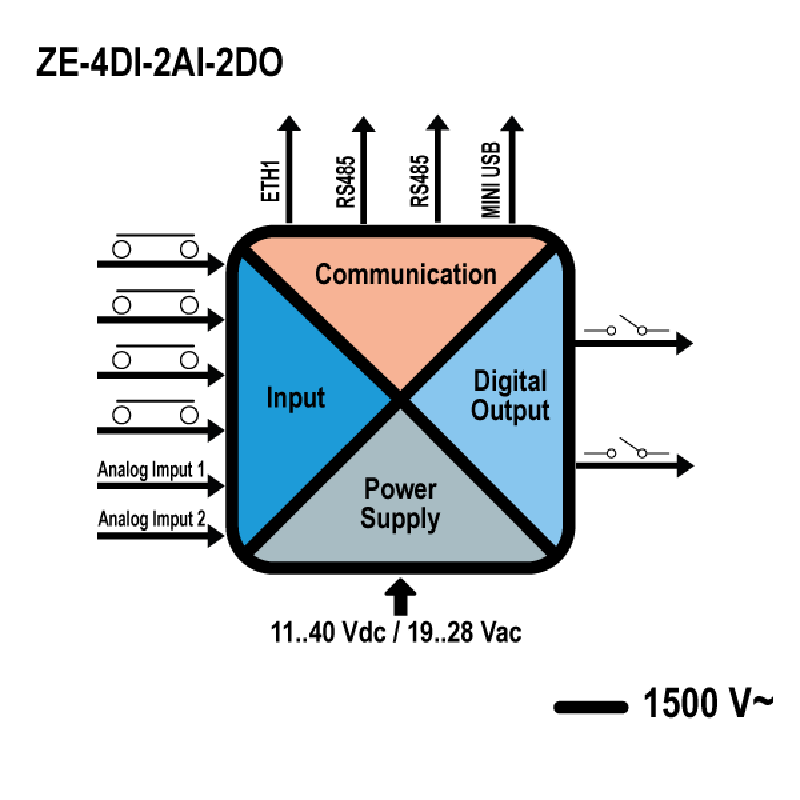

ZE-4DI-2AI-2DO is a I/O module with 4 digital inputs, 2 analog inputs, 2 relay outputs, slave for Modbus TCP-IP communication (Ethernet) and Modbus RTU, on two RS485 serial ports. The module supports server mode for the Ethernet communication port with ModbusTCP-IP protocol: Ethernet port (10-100 Mbps), 4 client, Embedded Webserver. ZE-4DI-2AI-2DO allows the possibility to set the parameters via internet (Web-server) or USB (Easy setup software) and the Modbus registers repetition on TCP-IP protocol (NR.1 Ethernet port) and RTU (NR.2 independent slave RS485 ports).

Description

ORDER CODE : ZE-4DI-2AI-2DO
DESCRIPTION: 4 CH Digital Input/ 2 CH Analogue Input, 2 CH Digital Output Modbus RTU-Modbus TCP-IP
POWER SUPPLY: 19.. 28 Vac (50..60 Hz), 11.. 40Vdc
INSULATION: 1.500 Vac
DIGITAL INPUT: 4-CH PNP, NPN, max freq. 7 kHz
DIGITAL OUTPUT: 2-CH SPDT relay max 5 A
ANALOG INPUT: 2-CH 0-20 mA / 0-30 V, 16 bit ADC resolution
TOTALIZERS: 4 @ 32 bit max 10 kHz
COUNTERS: 4 @ 32 bit max 7 kHz
INTERFACES: Nr 10/100 Mbps Ethernet port, Nr 2 RS485 ports, Nr 1 mini USB 2.0 port
PROTOCOLS: ModBUS RTU, ModBUS TCP-IP, http
CONFIGURATION: Software (EASY SETUP), DIP switch (address, baud rate), web server (I/O)
OPERATING TEMPERATURE: -20 °C.. +70 °C
DIMENSION: 100 x 35 x 111 mm

Additional information

Weight 0.255 kg

Download

DataSheet – ZE-4DI-2AI-2DO

Catalog – Distributed IO System Z-PC line
