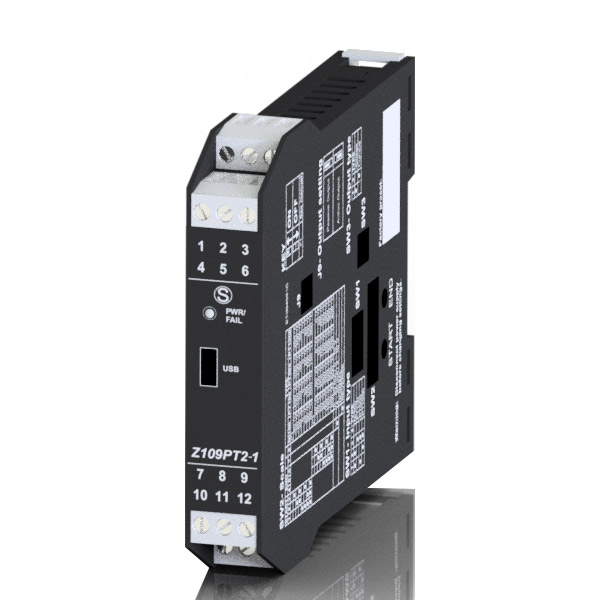

Z109PT2-1

Call for Price

SENECA RTD To DC Current / Voltage Isolator Converter

Z109PT2-1 is a converter for Thermoresistance RTD (PT100, PT1000, PT500, Nì100) with 2,3,4 wires and provides a mA/V standard output signal. It’s completely configurable through dip switches and software. A 3-way galvanic isolation among Power supply // input // output circuits assures the integrity of your datas. Unlike the better known Z109PT2, Z109PT2-1 presents on the front side a microUSB port instead or a serial port with jack 3.5 mm format.

Description

ORDER CODE : Z109PT2-1
DESCRIPTION: RTD to DC current / voltage isolator converter
POWER SUPPLY: 9..40 Vdc, 19-28 Vac 50-60 Hz
INSULATION: 1.500 @ 3 way
INPUT: RTD (Ni100, Pt100, Pt500, Pt1000, Ni100)
OUTPUT: Voltage (0..5 / 0..10 / 1..5 / 2..10 V), current (0..20 / 4..20 mA)
ACCURACY: 0,1%
SAMPLE FREQUENCY / RESOLUTION: From 240 sps (@ 11 bit + sign) to 15 sps (@ 15 bit + sign)
SETTINGS: Via DIP switch (input / output type, start – end, measure range), or jumper (active / passive output)
CONNECTION: MicroUSB connector on the front side

Additional information

Weight 0.16 kg

Download

DataSheet – Z109PT2-1

Catalog – Z-Line Converters and Isolators
