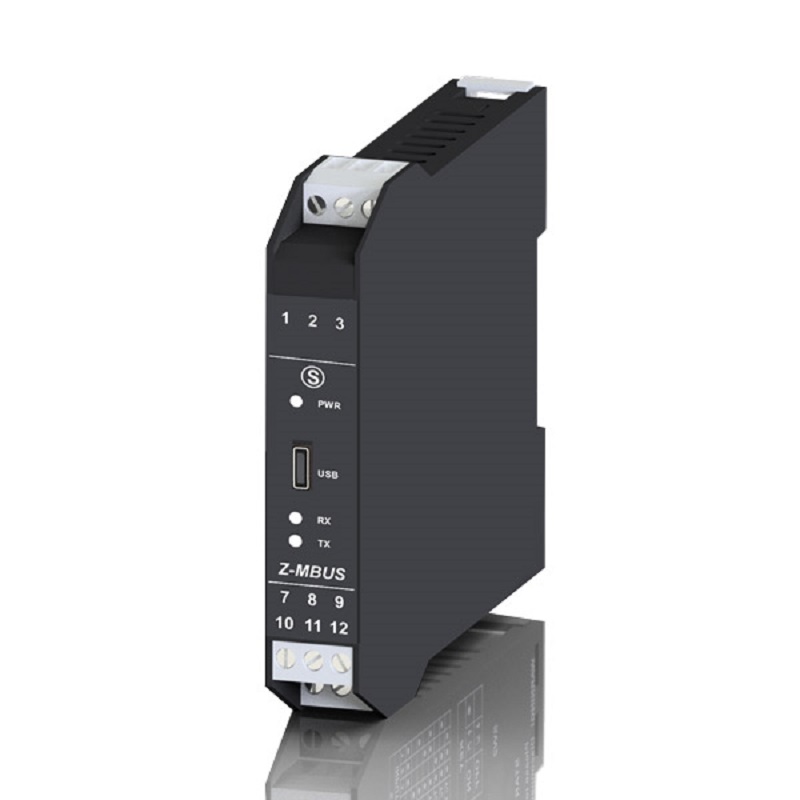

SENECA RS232/M-BUS, USB/M-BUS adapter module for SENECA or third-party CPUs

Meter-Bus (M-BUS) is the main bus used for energy metering and intelligent meter management, i.e. separate recording of heat, water, electricity and gas consumption.
The Z-MBUS adapter allows to interface M-BUS networks via RS232 serial port directly to SENECA controllers such as Z-TWS4, Z-PASS2-S, S6001-RTU and CPUs of other manufacturers that implement the protocol and have an RS232 port. Alternatively, with the micro USB port on board, you can access the M-BUS network from your workstation PC.
The module can power up to 25 M-BUS devices.
From the web server interface integrated into the SENECA controller, you can scan/configure/ diagnose Z-MBUS slave devices.
Straton SENECA controllers also provide an optional library of IEC 61131 function blocks for customizing data readings from M-BUS slaves.

Description

POWER SUPPLY 11..40 Vdc; 19..28 Vac (@50-60 Hz) both from terminals and from the rear IDC10 connector
POWER CONSUMPTION 2.4 W
PROTECTION DEGREE IP20
OPERATING TEMPERATURE  -20..+70°C
CONNECTIONS nr. 1 M-BUS port
nr. 1 RS232 port
nr. 1 Micro USB port
nr. 1 IDC10 connector (only power supply)
M-BUS (METER-BUS) PORT M-BUS devices: 25 Max
Speed: 300 – 38.400 bps Baud
Voltage: 28 Vdc
Max range: 3.000 m
MOUNTING DIN rail guide IEC EN 60715
CERTIFICATION CE
NORMS EN61000-6-4 Electromagnetic emission, in industrial environment
EN61000-6-2 Electromagnetic immunity, in industrial environment
EN61010-1 Security

Additional information

Weight 0.14 kg

Download

DataSheet – Z-MBUS
