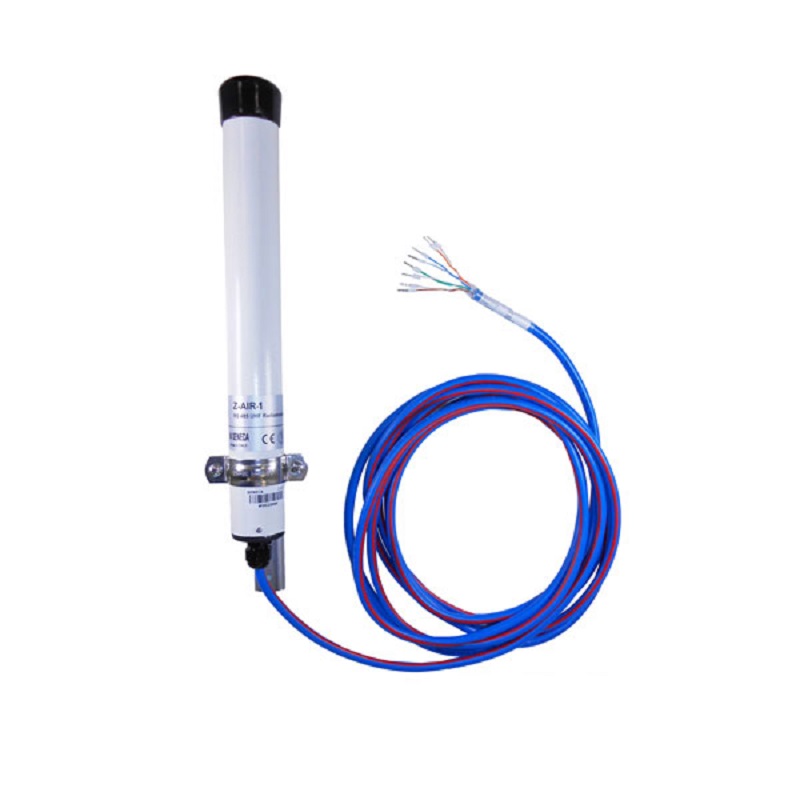

Z-AIR-1

Call for Price

SENECA Radiomodem 868 – 870 MHz with RS485 and built-in antenna. Complies with Directive 2014/53/UE (RED)

Z-AIR-1 (rev July 2019 identified by the serial number beginning with the letter “A”) is an IP65 radio modem with RS485 serial interface and built-in antenna suitable for outdoor applications. The module operates on an 868 – 870 MHz UHF band with 25 kHz or 50 kHz channeled sub-bands. Z-AIR-1 in free use does not require communication of use/frequency employment in accordance with recommendation ERC70-3. The integration of the radio modem with the antenna considerably improves system efficiency by eliminating the connection losses that are penalizing on high frequencies. Unlike its predecessor (Z-AIR), this variant conforms to Directive 2014/453/EU RED and offers multiple operating modes: point-to-point, point-to-multipoint, broadcasting and ModBUS in the master/slave or multi-master modes, programmable via software. These modes make the Z-AIR-1 a flexible product suitable for a wide range of industrial applications.

Description

ORDER CODE : Z-AIR-1
DESCRIPTION: Radiomodem with RS485 interface and integrated antenna
POWER SUPPLY: 9 – 32 Vdc
BANDWIDTH: 868 – 870 MHz
RANGE: Up to 7 km in open field with directive antenna in dominant position
DATA RATE: 9.600 bps (@ 25 kHz); 19.200 bps (@ 50 kHz)
OPERATING MODES Point-to-point, Point-to-multipoint, broadcasting, digirepetear; routing charts supported for forwarding
COMMUNICATION VIA RS485 The serial port is factory set at 9,600 bps (Baud Rate) 8N1, point-to-point and point-to-multipoint configuration.

If it is necessary to program the instrument with a different operating mode/boud rate/protocol, it is necessary to have an RS485/USB converter (please see accessories TAB).

If you need the device configured in mode 8N2 please make explicit request in the order notes.

ANTENNA: λ/2 embedded
MODULATION: 9K00F1D (@ 25 kHz); 18K00F1D (@ 50 kHz)
OPERATING TEMPERATURE: -30..+60 °C
DIMENSION: Ø 40 x L 420 mm
DEGREE OF PROTECTION: IP65
RECEIVER: CLASSE 2 – LBT e AGILITY
INTERFACE: RS485; data rate 1.200 – 57.600 bps; Communication mode Half /Full Duplex
CONFORMITY: CE

Additional information

Weight 0.975 kg
