Z-4AI

Call for Price

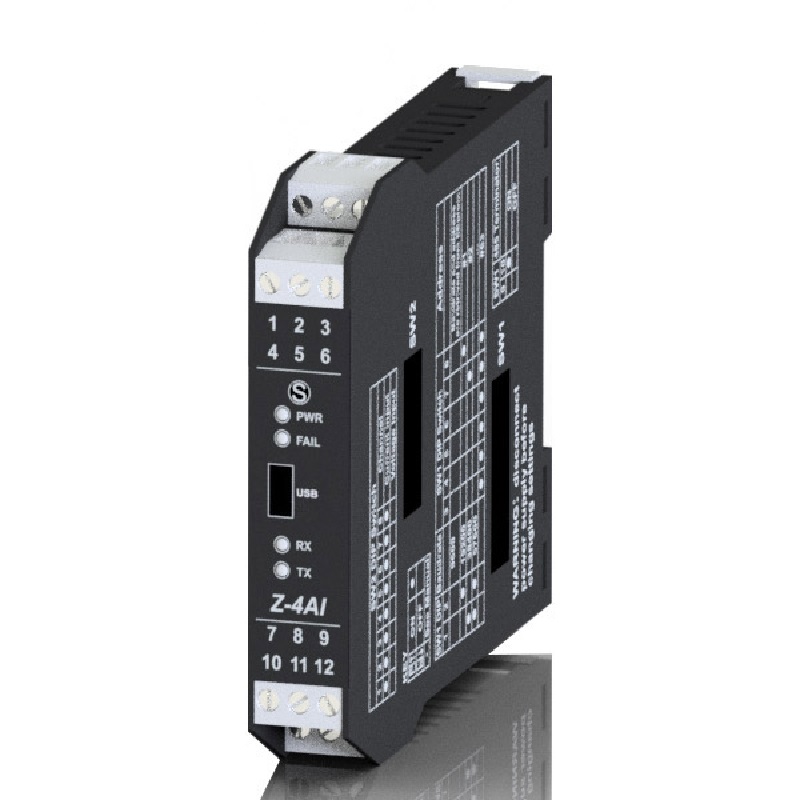

SENECA 4-CH analog input module / RS485

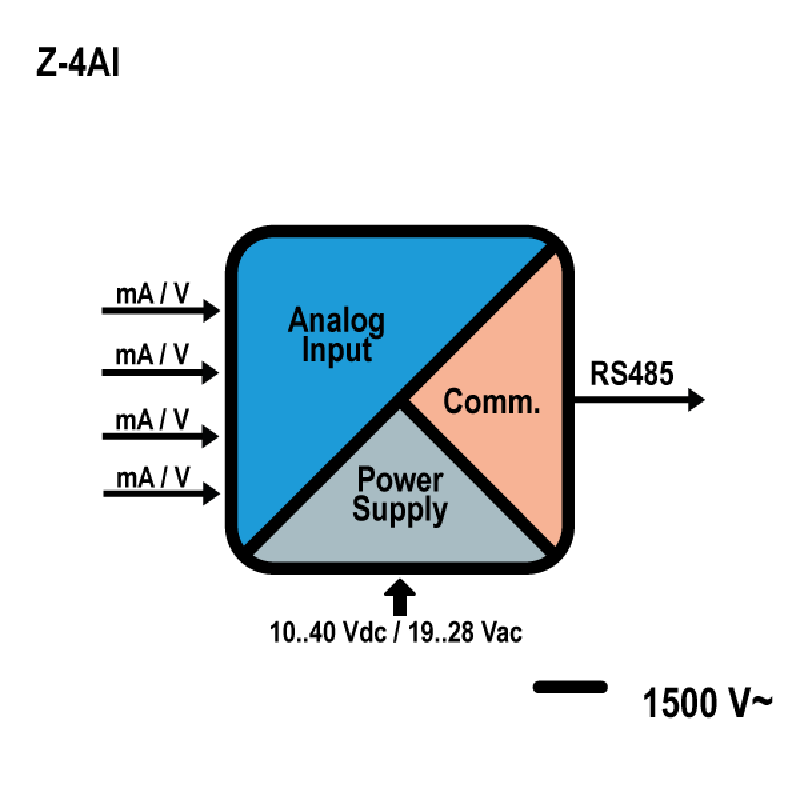

Z-4AI is used to interface analog inputs (Voltage or current, also with bipolar range) with Modbus system. The modules is able to supply all 4 current loops at the same time, this is very useful for 2-wire sensors because the wiring does not need an external power supply. It’s a ModBUS Slave and can be coupled with any ModBUS Master device. A 3-way galvanic isolation among Power supply // input // RS485 circuits assures the integrity of your datas.

Description

ORDER CODE : Z-4AI
DESCRIPTION: 4-CH analog input module / RS485
POWER SUPPLY: 10..40 Vdc; 19..28 Vac (50-60 Hz)
TRANSDUCERS SUPPLY: 20 Vdc, 20 mA
DIMENSIONS: 17,5 x 100 x 112 [mm]
MOUNTING: DIN 46277, 25 mm symmetrical rail
INPUT: CH-4 voltage (up to a ±10 Vdc) or current range (up to ±20 mA)
RESOLUTION: 14 bit + sign
COMMUNICATION: RS485 2 wire, ModBUS RTU slave protocol

Additional information

Weight 0.16 kg

Download

DataSheet – Z-4AI

Catalog – Distributed IO System Z-PC line
