VISUAL8

Call for Price

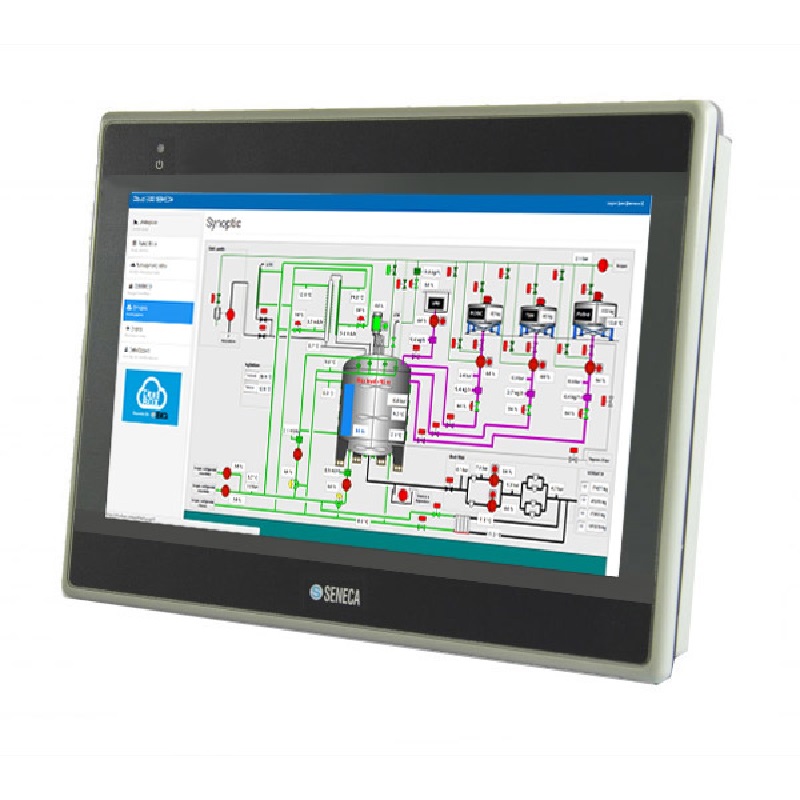

SENECA 10″ HMI panel touchscreen with Ethernet port, RS232, RS485

SENECA expands its offer for the Z-PC with VISUAL, the new range of operator panels suitable for the most common industrial controllers and supervisory/automation systems.
VISUAL8 is a 10″ HMI equipped with a powerful 600 Mhz Cortex A8 CPU, 128 MB of RAM, high quality display LED backlights with a 1024×600 pixel resolution and 2 serial ports (Nr. 1 RS232 e Nr. 1 RS485) and 1 ethernet port.

Description

ORDER CODE : VISUAL8
DESCRIPTION: 10″ HMI panel touchscreen with Ethernet port
POWER SUPPLY: 24 Vdc
POWER CONSUPTION: 650 mA @ 24 Vdc
DISPLAY: 10” TFT LCD, 1024×600 px resolution, 16M colors
TOUCHSCREEN: Resistive 4 wires
CONNECTIONS: Nr. 1 USB Client 2.0 port
Nr. 1 RS232
Nr. 1 RS485 port
Nr. 1 Ethernet port 10/100BaseT
OPERATING TEMPERATURE: 0..+50°C
PROTECTION DEGREE: NEMA4 / IP65
PROCESSORE: 32 bit RISC Cortex A8 600 MHz
FLASH MEMORY: 128 MB
RAM: 128 MB
RTC: built-in
DIMENSIONS (WXHXD): 271x213x36,4 mm
PANEL CUTOUT (WXH): 260×202 mm
WEIGHT: 1000 g
STANDARD: CE, UL

Additional information

Weight 0.87 kg

Download

Catalog – HMI Visual Series
