VISUAL5-WB

Call for Price

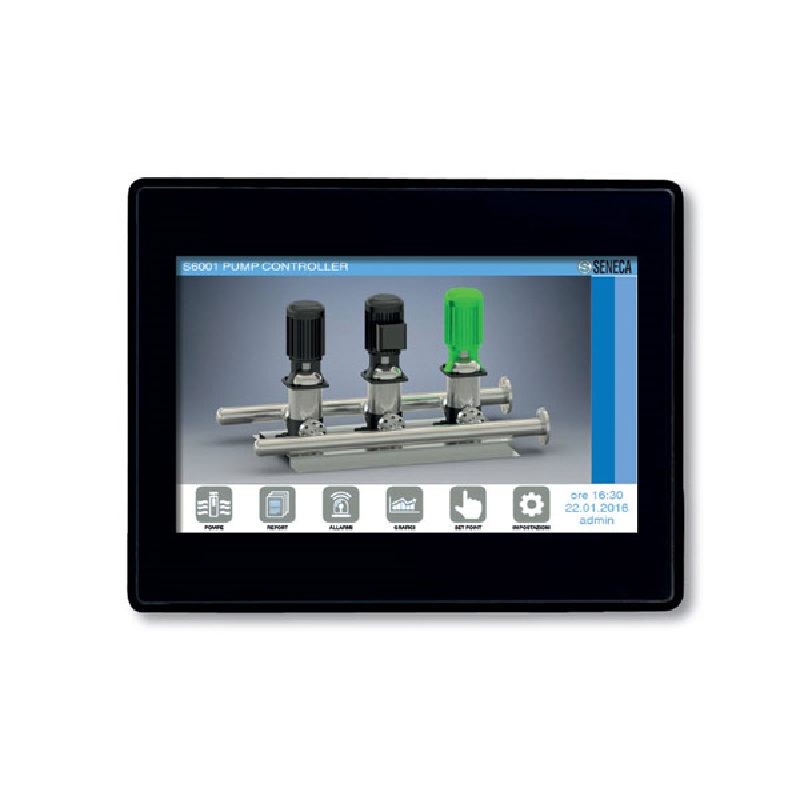

SENECA HMI touchscreen terminal 7″ version replica HMI / Web Server, CHROMIUM function

VISUAL5-WB is a 7″ operator panel suitable for HMI/Web Server data visualization with CHROMIUM function, equipped with a powerful 1 Ghz A8 Cortex CPU, 512 MB RAM, 4 Gb flash, a high quality LED backlight display with 800×480 pixel resolution, 1 configurable serial port (RS232/RS485/RS422) and a 10/100 BaseT Ethernet port.

Description

ORDER CODE : VISUAL5-WB
DESCRIPTION: 7″ HMI panel touchscreen
POWER SUPPLY: 24 Vdc
POWER CONSUPTION: 300 mA @ 24 Vdc
DISPLAY: 7” TFT LCD, 800×480 px resolution, 16M colors
TOUCHSCREEN: Resistive 4 wires
CONNECTIONS: Nr. 1 USB Client 2.0 port
Nr. 1 RS232/RS485/RS422 settable port
Nr. 1 Ethernet port 10/100BaseT
OPERATING TEMPERATURE: 0..+50°C
PROTECTION DEGREE: Front IP66 REAR IP20
PROCESSORE: 32 bit RISC Cortex A8 1 GHz
FLASH MEMORY: 4 GB
RAM: 512 MB
RTC: built-in
DIMENSIONS (WXHXD): 187 x 147 x 29 mm
WEIGHT: 600 g
STANDARD: CE, UL

Additional information

Weight 0.6 kg

Download

Catalog – HMI Visual Series
