VISUAL4

Call for Price

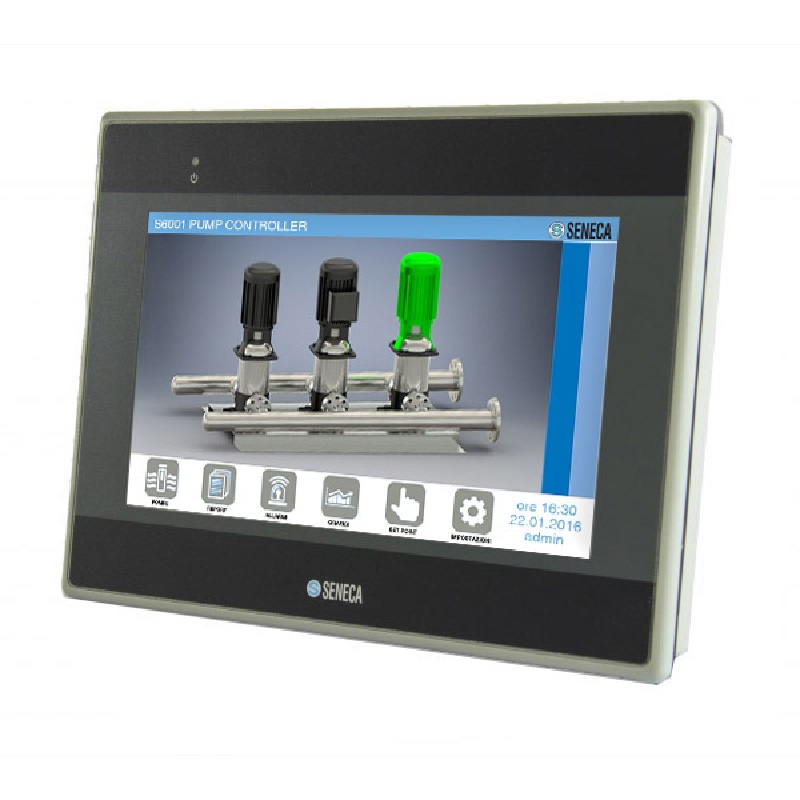

SENECA 7″ HMI panel touchscreen with Ethernet port

SENECA expands its offer for the Z-PC with VISUAL, the new range of operator panels suitable for the most common industrial controllers and supervisory/automation systems.
VISUAL4 is a 7″ HMI equipped with a powerful 600 Mhz Cortex A8 CPU, 128 MB of RAM, high quality display LED backlights with a 800×480 pixel resolution and 2 serial ports (Nr. 1 RS232 and Nr. 1 RS232/RS485).
Thanks to its USB 2.0 port (host) at the bottom of the panel you can easily transfer data. 128 MB of flash capacity permits you to download projects up to 16 MB and logs/sample datas up to 48 MB.

Description

ORDER CODE : VISUAL4
DESCRIPTION: 7″ HMI panel touchscreen with Ethernet port
POWER SUPPLY: 24 Vdc
POWER CONSUPTION: 350 mA @ 24 Vdc
DISPLAY: 7” TFT LCD, 800×480 px resolution, 16M colors
TOUCHSCREEN: Resistive 4 wires
CONNECTIONS: Nr. 1 USB Client 2.0 port
Nr. 1 RS232 port
Nr. 1 RS232/RS485 port
Nr. 1 Ethernet port 10/100BaseT
OPERATING TEMPERATURE: -20..+60°C
PROTECTION DEGREE: NEMA4 / IP65
PROCESSORE: 32 bit RISC Cortex A8 600 MHz
FLASH MEMORY: 128 MB
RAM: 128 MB
RTC: built-in
DIMENSIONS (WXHXD): 200,4×146,5×34 mm
WEIGHT: 600 g
STANDARD: CE

Additional information

Weight 0.87 kg

Download

Catalog – HMI Visual Series
