VISUAL11

Call for Price

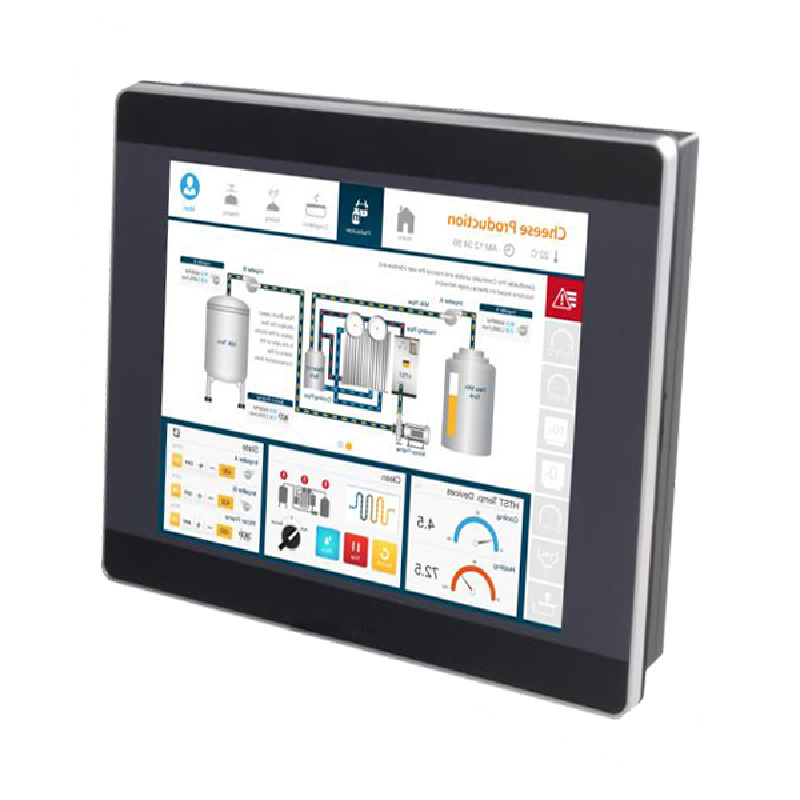

SENECA 9,7″ HMI panel touchscreen with 2 Ethernet port and isolated serial ports RS232, RS485

SENECA expands its offer for the Z-PC with VISUAL, the new range of operator panels suitable for the most common industrial controllers and supervisory/automation systems.
VISUAL11 is a 9,7″ HMI equipped with a powerful 1 GHz Cortex A8 CPU, 256 MB of RAM, high quality display LED backlights with a 1024×768 pixel resolution, 2 isolated serial ports (Nr. 1 RS232 e Nr. 1 RS485) and 2 gigabit ethernet ports.
Categories: , ,

Description

ORDER CODE : VISUAL11
DESCRIPTION: 9,7″ HMI panel touchscreen with 2 Ethernet port and 2 isolated serial ports RS232, RS485
POWER SUPPLY: 24 Vdc
POWER CONSUPTION: 650 mA @ 24 Vdc
DISPLAY: 9,7” TFT LCD, 1024×768 px resolution, 262k colors
TOUCHSCREEN: Resistive 4 wires
CONNECTIONS: Nr. 1 USB host 2.0 port
Nr. 1 RS232 port (isolated)
Nr. 1 RS485 port (isolated)
Nr. 2 Ethernet port 10/100/1000 BaseT
OPERATING TEMPERATURE: 0..+50°C
PROTECTION DEGREE: NEMA4 / IP65
PROCESSORE: 32 bit RISC Cortex A8 1 GHz
FLASH MEMORY: 512 MB
RAM: 256 MB
RTC: built-in
DIMENSIONS (WXHXD): 271x213x36,4 mm
PANEL CUTOUT (WXH): 260×202 mm
WEIGHT: 850 g
STANDARD: CE

Additional information

Weight 0.87 kg

Download

Catalog – HMI Visual Series
