T201DCH50-M

Call for Price

SENECA AC/DC Contactless TRMS Current Transducer With Modbus Interface

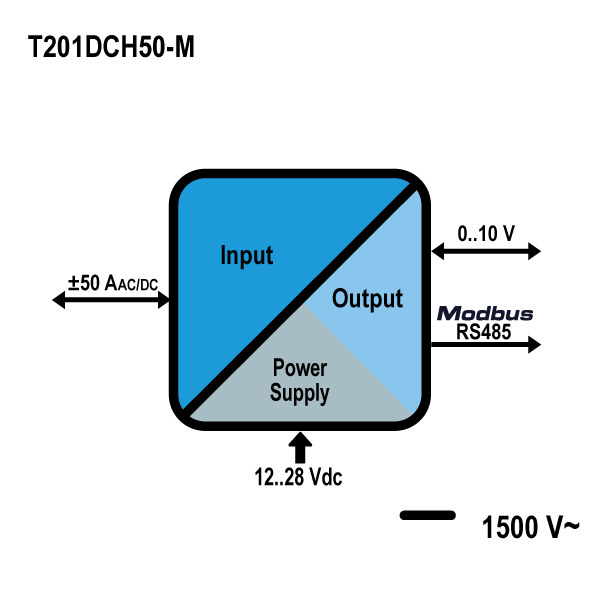

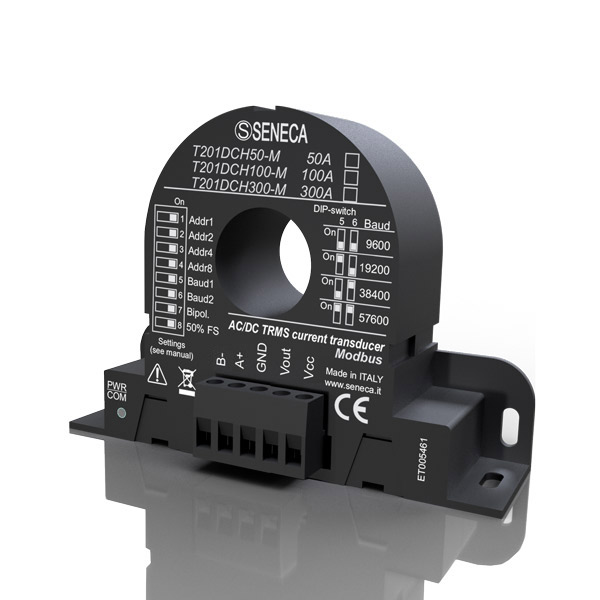

T201DCH50-M is an isolated, contact-less direct and alternating TRMS current transducer with ModBUS interface. The device’s function and look are very similar to those of an active standard CT, but with the remarkable feature of measuring the continuous component of the pass-trough current. For its electrical endurance, ease of use and compact dimensions, T201DCH50-M fits every kind of current measurement up to 50 Adc or 50 Aac

Description

ORDER CODE : T201DCH50-M
DESCRIPTION: AC/DC contactless TRMS direct and alternate current transducer with ModBUS interface
POWER SUPPLY: 12..28 Vdc
ACCURACY CLASS: 0,5
MEASURE TYPE: TRMS
INPUT RANGE: ±50 A rms o ±25 Arms (settable by DIP switch)
OUTPUT TYPE: 0..10 Vdc (min load 2 kΩ)
HOLE DIAMETER: 21 mm

Additional information

Weight 0.19 kg

Download

Catalog – T201 Series Transducers Transformers
